B172LF Brake Pad Wear Sensor - Left Front (J57)
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
|
|

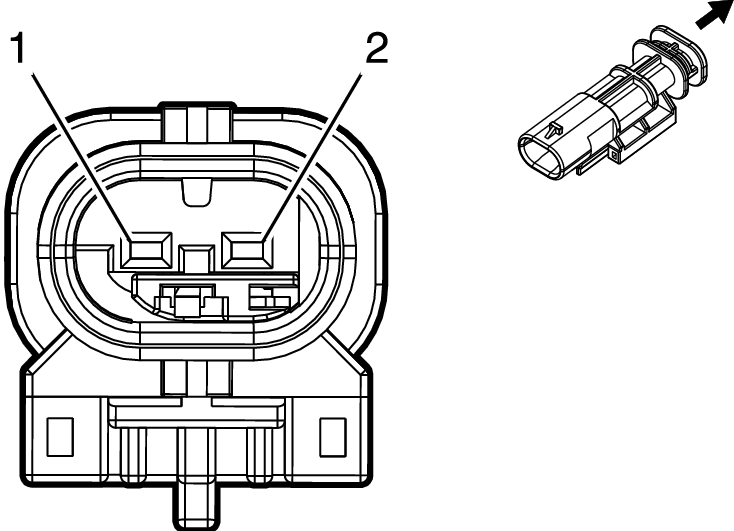

Connector Part Information
- Harness Type: Engine
- OEM Connector: 2-1703498-3
- Service Connector: 13505428
- Description: 2-Way M 1.2 MCP Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-13 (BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN |
1613 |
Brake Lining Wear Sensor Signal Right Front |
I |
- |
| 2 |
0.5 |
WH |
1612 |
Brake Lining Wear Sensor Signal Left Front |
I |
- |
