X510 Driver Mirror Harness to Driver Door Harness
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

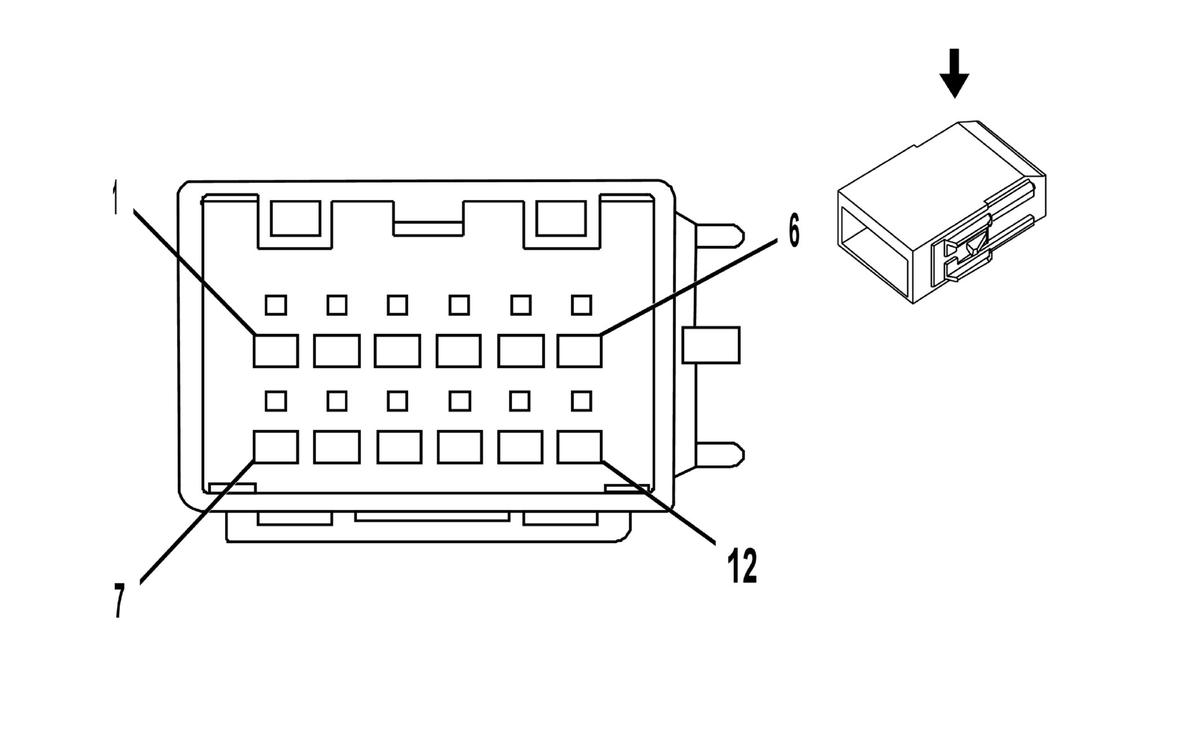

Connector Part Information
|
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-64B (LT BU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| II | Not Required | J-35616-65B (LT BU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Terminal Type ID | Option | Function | Pin | Size | Color | Circuit | Terminal Type ID | Option |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 0.35 | GY/BN | 3394 | I | AAB | Driver Mirror Position Sensor Up (+) Down (-) Signal | 1 | 0.35 | GY/BN | 3394 | II | - |
| 2 | 0.5 | YE/WH | 1690 | I | DD8 | Automatic Day/Night Mirror Signal | 2 | 0.5 | YE/WH | 1690 | II | - |
| 3 | 0.35 | WH/YE | 3395 | I | AAB | Driver Mirror Position Sensor Left (-) Right (+) Signal | 3 | 0.35 | WH/YE | 3395 | II | - |
| 4 | 0.5 | BK/YE | 1691 | I | DD8 | Automatic Day/Night Mirror Low Reference | 4 | 0.5 | BK/YE | 1691 | II | - |
| 5 | 0.35 | BK/BN | 3393 | I | AAB | Driver Mirror Position Sensor Low Reference | 5 | 0.35 | BK/BN | 3393 | II | - |
| 6 | 0.5 | BU/WH | 1314 | I | EXP-CV3 | Left Front Turn Signal Lamp Control | 6 | 0.5 | BU/WH | 1314 | II | EXP-CV3 |
| 7 | 0.5 | BN/YE | 2267 | I | - | Mirror Heating Element Control | 7 | 0.5 | BN/YE | 2267 | II | - |
| 8 | 0.35 0.5 |
VT/BU VT/BU |
3390 3390 |
I I |
AAB -AAB |
Driver Mirror Motor Up (+) Down (-) Control Driver Mirror Motor Up (+) Down (-) Control |
8 | 0.35 0.5 |
VT/BU VT/BU |
3390 3390 |
II II |
AAB -AAB |
| 9 | 0.35 0.5 |
BN/BK BN/BK |
3389 3389 |
I I |
AAB -AAB |
Driver Mirror Motor Right (+) Left (-) Control Driver Mirror Motor Right (+) Left (-) Control |
9 | 0.35 0.5 |
BN/BK BN/BK |
3389 3389 |
II II |
AAB -AAB |
| 10 | 0.5 | BK | 1150 | I | - | Ground | 10 | 0.5 | BK | 1150 | II | - |
| 11 | 0.5 0.35 |
YE/BN YE/BN |
3391 3391 |
I I |
AAB -AAB |
Driver Mirror Motor Common Control Driver Mirror Motor Common Control |
11 | 0.35 0.5 |
YE/BN YE/BN |
3391 3391 |
II II |
AAB -AAB |
| 12 | 0.35 | VT/RD | 3392 | I | AAB | Driver Mirror Position Sensor 5V Reference | 12 | 0.35 | VT/RD | 3392 | II | - |
