X500 Driver Door Harness to Body Harness

WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

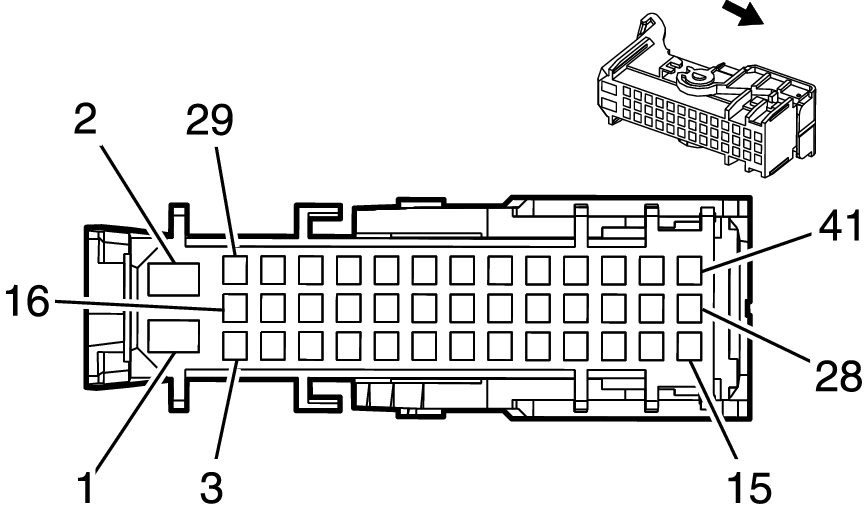

GM2474678

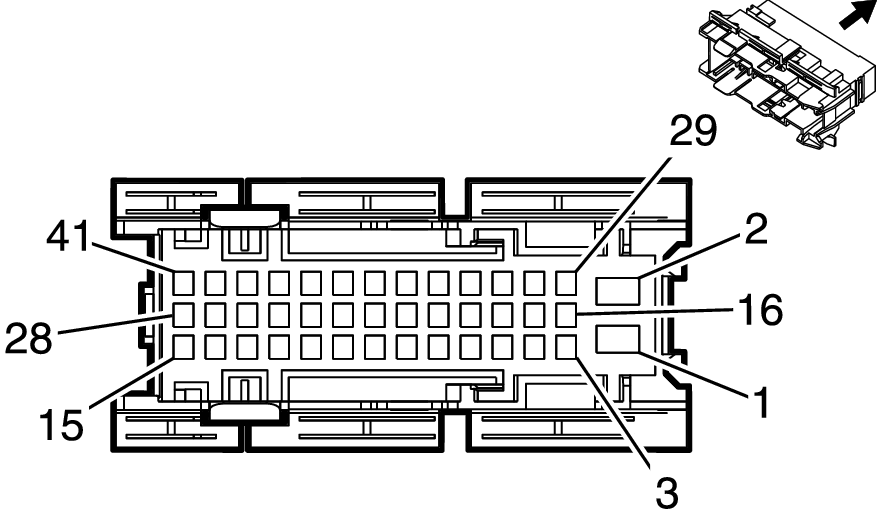

GM3338649
Connector Part Information
  • Harness Type: Driver Door
  • OEM Connector: 13678795
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 41-Way F 4.8 Timer, 1.5 DSQ Series (GY)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13882358
  • Service Connector: 19119361
  • Description: 41-Way M 1.5 DSQ Series (GY)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required J-35616-14 (GN) No Tool Required Not Required Not Required Not Required Not Required
II Not Required J-35616-42 (RD) No Tool Required Not Required Not Required Not Required Not Required
III 13575706 J-35616-32 (OR) J-38125-36 Not Available Not Available Not Available Not Available
IV 13575775 J-35616-34 (YE) J-38125-560 Not Available Not Available Not Available Not Available
V 19368263 J-35616-34 (YE) J-38125-560 964265-2 Lear 28 C A
VI 19368263 J-35616-34 (YE) J-38125-560 964265-2 Lear 28 E 2
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 2.5 RD/BU 1842 II - Battery Positive Voltage 1 2.5 RD/BU 1842 III -
2 4 BK 1150 II - Ground 2 4 BK 1150 III -
3 - - - - - Not Occupied 3 - - - - -
4 0.5 BK/YE 1691 I - Automatic Day/Night Mirror Low Reference 4 0.35 BK/YE 1691 IV -
5 0.5 BU/WH 1314 I - Left Front Turn Signal Lamp Control 5 0.5 BU/WH 1314 VI -
6 1 BN/BU 118 I - Left Front Speaker Signal (-) 1 6 1 BN/BU 118 V -
7 1 BU 201 I - Left Front Speaker Control (+) 1 7 1 BU 201 V -
8 0.5 GN/BK 3008 I - Noise Reduction Microphone 1 Low Reference 8 0.35 GN/BK 3008 IV -
9 0.5 GN/BN 3005 I - Noise Reduction Microphone 1 Signal 9 0.35 GN/BN 3005 IV -
10 0.5 YE/GY 1382 I - LED Dimming Signal 10 0.35 YE/GY 1382 IV -
11 0.5 WH/VT 3405 I - Driver Mirror Switch Up (-) Down (+) Signal 11 0.5 WH/VT 3405 VI -
12 0.5 VT/BK 3404 I - Driver Mirror Switch Right (+) Left (-) Signal 12 0.5 VT/BK 3404 VI -
13 0.5 BK/VT 5478 I - Mirror Switch Low Reference 13 0.5 BK/VT 5478 VI -
14 0.75 BU/BN 1957 I - Left Front Midrange Speaker (-) Low Reference 14 1 BU/BN 1957 V -
15 0.75 BU/VT 1857 I - Left Front Midrange Speaker Control (+) 15 1 BU/VT 1857 V -
16 0.5 BK/OG 6628 I - Left Front Side Impact Sensing Module Low Reference 16 0.5 BK/OG 6628 VI -
17 0.5 OG/GN 2132 I - Left Front Side Impact Sensing Module Signal 17 0.5 OG/GN 2132 VI -
18 0.5 YE/BN 3391 I - Driver Mirror Motor Common Control 18 0.35 YE/BN 3391 IV -
19 0.5 VT/BU 3390 I - Driver Mirror Motor Up (+) Down (-) Control 19 0.35 VT/BU 3390 IV -
20 0.5 BN/BK 3389 I - Driver Mirror Motor Right (+) Left (-) Control 20 0.35 BN/BK 3389 IV -
21 0.5 BK/VT 5968 I - Driver Door Lock Status Indicator Signal Ground 21 0.35 BK/VT 5968 IV -
22 0.5 WH 6816 I - Indicator Dimming Control 22 0.35 WH 6816 IV -
23 - - - - - Not Occupied 23 - - - - -
24 0.5 BN/WH 781 I - Driver Door Lock Switch Unlock Signal 24 0.35 BN/WH 781 IV -
25 0.5 BN/YE 780 I - Driver Door Lock Switch Lock Signal 25 0.35 BN/YE 780 IV -
26 0.5 GY 745 I - Left Front Door Ajar Switch Signal 26 0.35 GY 745 IV -
27 - - - - - Not Occupied 27 - - - - -
28 0.5 RD/VT 1940 I - Battery Positive Voltage 28 0.5 RD/VT 1940 VI -
29 - 30 - - - - - Not Occupied 29 - 30 - - - - -
31 0.5 YE 6817 I - LED Backlight Dimming Control 31 0.35 YE 6817 IV -
32 0.5 GN/WH 7530 I - Local Interconnect Network Serial Data Bus 8 32 0.35 GN/WH 7530 IV -
33 0.5 BU/GN 614 I - Memory Seat Switch Set Signal 33 0.35 BU/GN 614 IV -
34 0.5 BK/BU 5978 I - Memory Switch Low Reference 34 0.35 BK/BU 5978 IV -
35 0.5 GN/YE 6134 I - Local Interconnect Network Serial Data Bus 3 35 0.35 GN/YE 6134 IV -
36 0.5 YE/WH 1690 I - Automatic Day/Night Mirror Signal 36 0.35 YE/WH 1690 IV -
37 0.5 GN/WH 3570 I - Driver Door Handle Switch Signal 37 0.35 GN/WH 3570 IV -
38 0.5 WH 615 I - Memory Seat Switch Signal 1 38 0.35 WH 615 IV -
39 0.5 BN/YE 2267 I - Mirror Heating Element Control 39 0.5 BN/YE 2267 VI -
40 - 41 - - - - - Not Occupied 40 - 41 - - - - -
