X310 Driver Seat Cushion Harness to Body Harness

WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

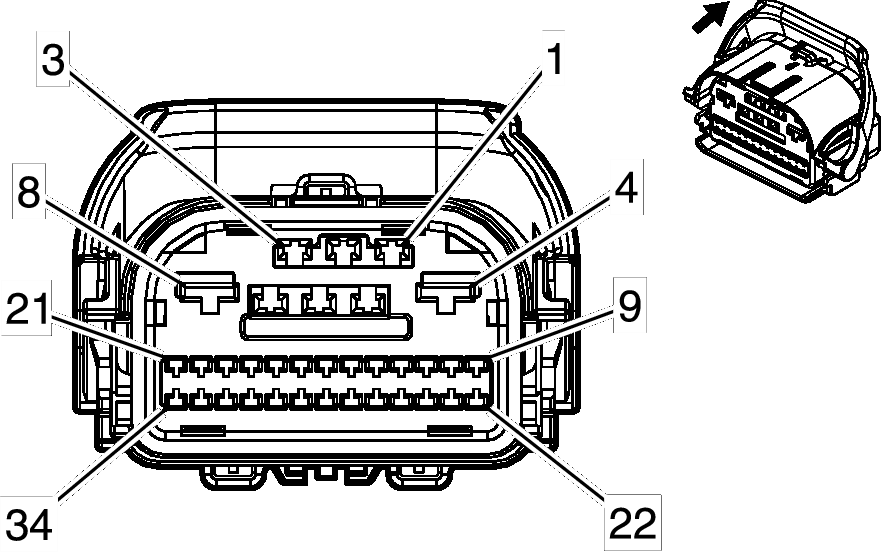

GM3293628

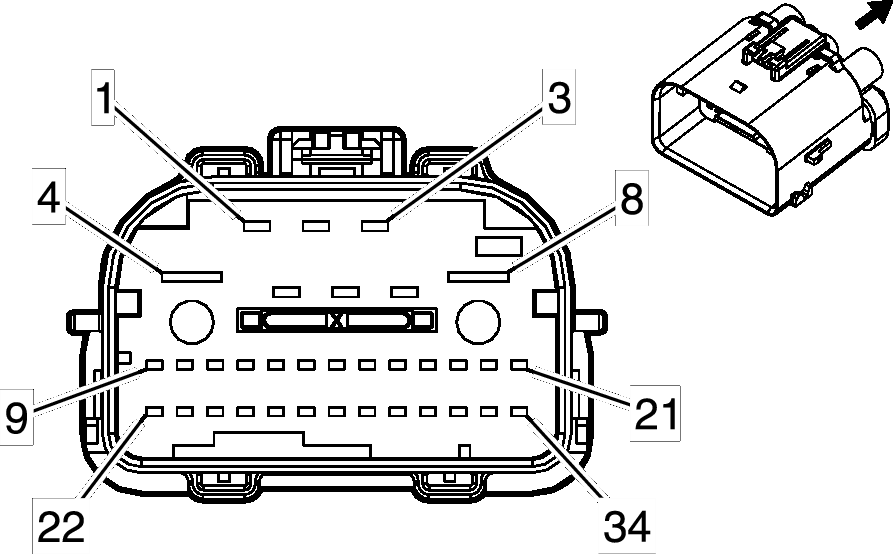

GM3293629
Connector Part Information
  • Harness Type: Driver Seat Back
  • OEM Connector: 1587268-4
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 34-Way F 1.5, 2.8, 6.3 Series (BK)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 1587269-4
  • Service Connector: 19331030
  • Description: 34-Way M 1.5, 2.8, 6.3 Series (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required J-35616-2A (GY) No Tool Required Not Required Not Required Not Required Not Required
II Not Required J-35616-35 (VT) No Tool Required Not Required Not Required Not Required Not Required
III Not Required J-35616-42 (RD) No Tool Required Not Required Not Required Not Required Not Required
IV 13575823 J-35616-5 (PU) J-38125-11A 7114-4110-02 Yazaki 9 E C
V 13575823 J-35616-5 (PU) J-38125-11A Not Available Not Available Not Available Not Available
VI 13575824 J-35616-5 (PU) J-38125-11A Not Available Not Available Not Available Not Available
VII 13580014 J-35616-3 (GY) J-38125-217 Not Available Not Available Not Available Not Available
VIII 13580023 J-35616-43 (RD) J-38125-11A Not Available Not Available Not Available Not Available
IX 19119842 J-35616-3 (GY) J-38125-217 Not Available Not Available Not Available Not Available
X 19368518 J-35616-43 (RD) J-38125-11A 7114-4122-02 Yazaki 9 A B
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 1.5 BK 2150 II - Ground 1 1.5 BK 2150 VI -
2 0.75 BN/VT 2077 II - Driver Heated Seat Element Control 2 0.75 BN/VT 2077 V -
3 0.75 BN 2432 II - Driver Heated Back Element Control 3 0.75 BN 2432 V -
4 4 BK 1150 III - Ground 4 4 BK 1150 X -
5 - 6 - - - - - Not Occupied 5 - 6 - - - - -
7 0.5 VT/WH 1939 II - Run/Crank Ignition 1 Voltage 7 0.5 VT/WH 1939 IV -
8 2.5 RD/WH 1642 III - Battery Positive Voltage 8 2.5 RD/WH 1642 VIII -
9 0.5 OG/GN 3481 I - Driver Seat Belt Anchor Pretensioner High Control 9 0.5 OG/YE 3481 VII -
10 - - - - - Not Occupied 10 - - - - -
11 0.5 OG/BU 3068 I - Driver Side Impact Module High Control 11 0.5 OG/BU 3068 VII -
12 - - - - - Not Occupied 12 - - - - -
13 0.5 OG/BN 238 I - Driver Seat Belt Switch Signal 13 0.35 OG/BN 238 IX -
14 0.5 BK/OG 1363 I - Driver Seat Belt Switch Low Reference 14 0.35 BK/OG 1363 IX -
15 - - - - - Not Occupied 15 - - - - -
16 0.35 GN/WH 7530 I - Local Interconnect Network Serial Data Bus 8 16 0.35 GN/WH 7530 IX -
17 0.5 GN 5060 I - Low Speed GMLAN Serial Data 17 0.5 GN 5060 IX -
18 0.5 BU 4607 I - Driver Seat Bulk Head Limit Switch Signal 18 0.5 BU 4607 IX -
19 0.5 YE 4605 I - Driver Seat Status Switch Voltage Reference 19 0.5 YE 4605 IX -
20 - - - - - Not Occupied 20 - - - - -
21 0.35 GN/VT 5906 I - Driver Seat Vent Motor Control 1 21 0.35 GN/VT 5906 IX -
22 0.5 WH/OG 3482 I - Driver Seat Belt Anchor Pretensioner Low Control 22 0.5 YE/OG 3482 VII -
23 - - - - - Not Occupied 23 - - - - -
24 0.5 GN/OG 3069 I - Driver Side Impact Module Low Control 24 0.5 GN/OG 3069 VII -
25 - 27 - - - - - Not Occupied 25 - 27 - - - - -
28 0.75 RD/WH 2040 I - Battery Positive Voltage 28 0.5 RD/WH 2040 IX -
29 - - - - - Not Occupied 29 - - - - -
30 0.35 BK/BU 5978 I - Memory Switch Low Reference 30 0.35 BK/BU 5978 IX -
31 0.35 BU/GN 614 I - Memory Seat Switch Set Signal 31 0.35 BU/GN 614 IX -
32 0.35 WH 615 I - Memory Seat Switch Signal 1 32 0.35 WH 615 IX -
33 - 34 - - - - - Not Occupied 33 - 34 - - - - -
