X306 Driver Seat Back Jumper Harness to Driver Seat Back Harness
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

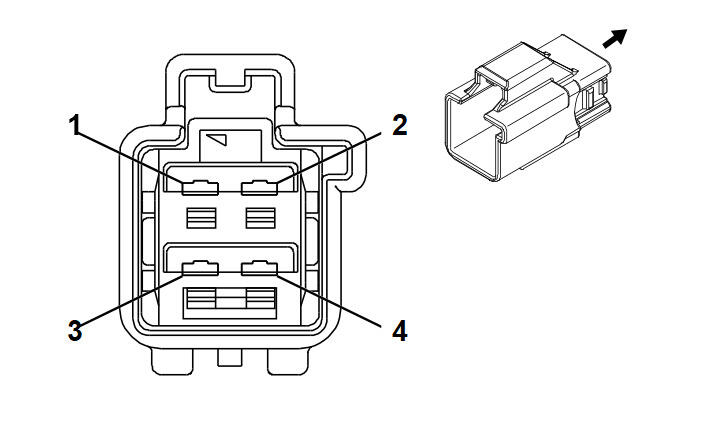

Connector Part Information
- Harness Type: Driver Seat Back Jumper
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F
|

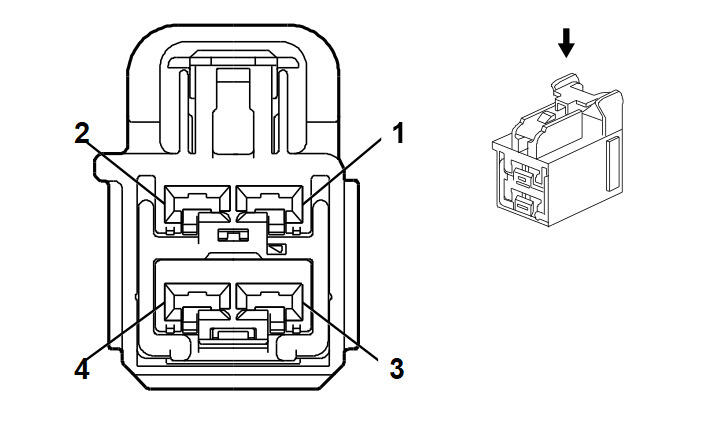

Connector Part Information
- Harness Type: Driver Seat Back
- OEM Connector: 7282-6446-40
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M 2.8 YESC Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-5 (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
2 |
BU/WH |
277 |
I |
- |
Driver Power Seat Recline Motor Rearward Control |
1 |
2 |
BU/WH |
277 |
II |
- |
| 2 |
0.5 |
WH/BK |
570 |
I |
- |
Driver Memory Seat Recline Motor Position Sensor Signal |
2 |
0.5 |
WH/BK |
570 |
II |
- |
| 3 |
2 |
GN/YE |
276 |
I |
- |
Driver Power Seat Recline Motor Forward Control |
3 |
2 |
GN/YE |
276 |
II |
- |
| 4 |
0.5 |
WH/RD |
3298 |
I |
- |
Memory Sensor High Reference 2 |
4 |
0.5 |
WH/RD |
3298 |
II |
- |
