X305 Driver Seat Back Harness to Driver Seat Cushion Harness
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

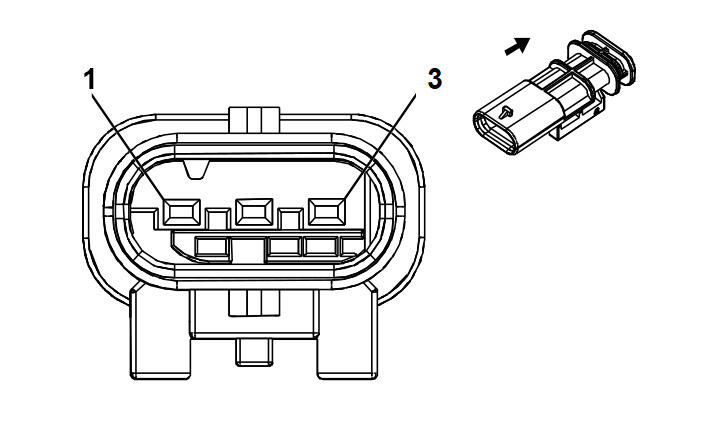

Connector Part Information
- Harness Type: Driver Seat Back
- OEM Connector: 1-2141523-4
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 1.2 MCON Series, Sealed (YE)
|
Connector Part Information
- Harness Type: Driver Seat Back
- OEM Connector: 1-1703494-4
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way M 1.2 MCON Series, Sealed (YE)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-13 (BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG/BU |
3068 |
I |
- |
Driver Side Impact Module High Control |
1 |
0.5 |
OG/BU |
3068 |
II |
- |
| 2 |
0.5 |
GN/OG |
3069 |
I |
- |
Driver Side Impact Module Low Control |
2 |
0.5 |
GN/OG |
3069 |
II |
- |
| 3 |
0.5 |
YE |
4605 |
I |
- |
Driver Seat Status Switch Voltage Reference |
3 |
0.5 |
YE |
4605 |
II |
- |
