X301 Headliner Harness to Instrument Panel Harness
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

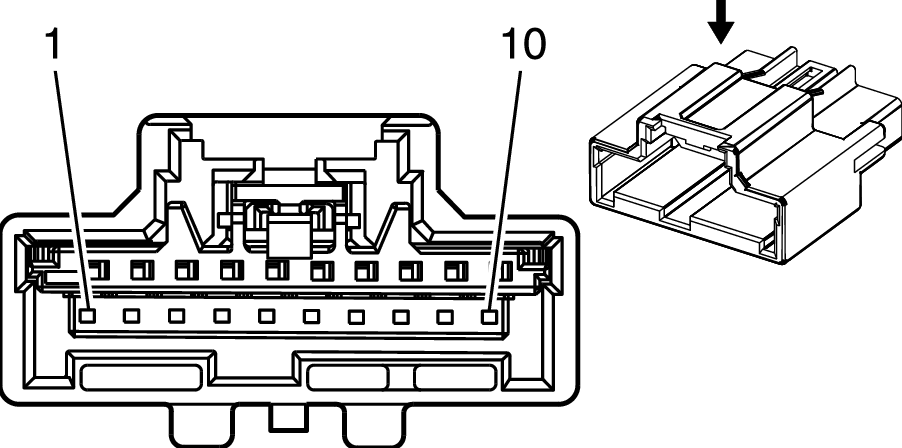

Connector Part Information
- Harness Type: Headliner
- OEM Connector: 7283-9088-30
- Service Connector: 89047355
- Description: 10-Way F 0.64 Kaizen Series (BK)
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 7282-9082-30
- Service Connector: 89047356
- Description: 10-Way M 0.64 Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575867 |
J-35616-64B (LT BU) |
J-38125-215A |
SAIT-A03T-M064 |
Yazaki 14 |
P |
P |
| II |
13575826 |
J-35616-65B (LT BU) |
J-38125-215A |
7114-4618-02 |
Yazaki 27 |
P |
P |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD/VT |
4040 |
I |
- |
Battery Positive Voltage |
1 |
0.35 |
RD/VT |
4040 |
II |
- |
| 2 |
0.35 |
BK |
1450 |
I |
- |
Ground |
2 |
0.35 |
BK |
1450 |
II |
- |
| 3 |
0.35 |
GN/BN |
6132 |
I |
- |
Local Interconnect Network Serial Data Bus 1 |
3 |
0.35 |
GN/BN |
6132 |
II |
- |
| 4 |
0.35 |
VT/BK |
5068 |
I |
- |
Intrusion Sensor Switch Disable Signal |
4 |
0.35 |
VT/BK |
5068 |
II |
- |
| 5 |
0.35 |
YE/BU |
3278 |
I |
- |
Intrusion Sensor Switch LED Control |
5 |
0.35 |
YE/BU |
3278 |
II |
- |
| 6 |
- |
- |
- |
- |
- |
Not Occupied |
6 |
- |
- |
- |
- |
- |
| 7 |
0.5 |
GY |
157 |
I |
- |
Interior Lamp Control |
7 |
0.5 |
GY |
157 |
II |
- |
| 8 |
0.5 |
BK |
1450 |
I |
- |
Ground |
8 |
0.5 |
BK |
1450 |
II |
- |
| 9 - 10 |
- |
- |
- |
- |
- |
Not Occupied |
9 - 10 |
- |
- |
- |
- |
- |
