Instrument Panel Accessory Trim Plate Replacement (Acadia)
Instrument Panel Accessory Trim Plate Replacement (Acadia)

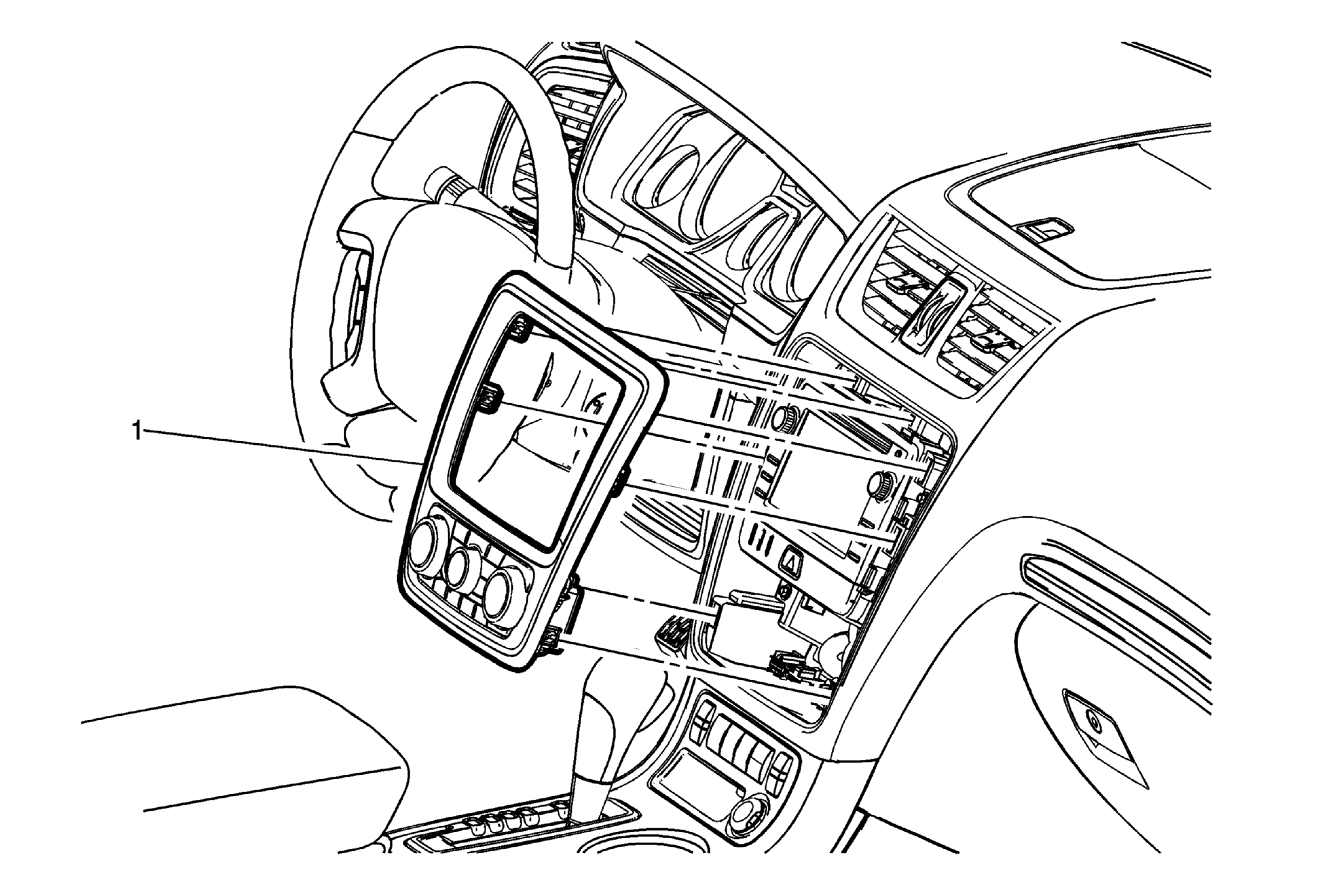

Fig 1: Instrument Panel Accessory Trim Plate (Acadia)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Instrument Panel Accessory Trim Plate Assembly
Procedure
Use a flat-bladed plastic trim tool in order to release the accessory trim plate from the instrument panel assembly.
Disconnect the electrical connections.
When replacing the accessory trim plate, transfer all necessary components.
