Front Floor Console Extension Panel Replacement - Right Side (Acadia)

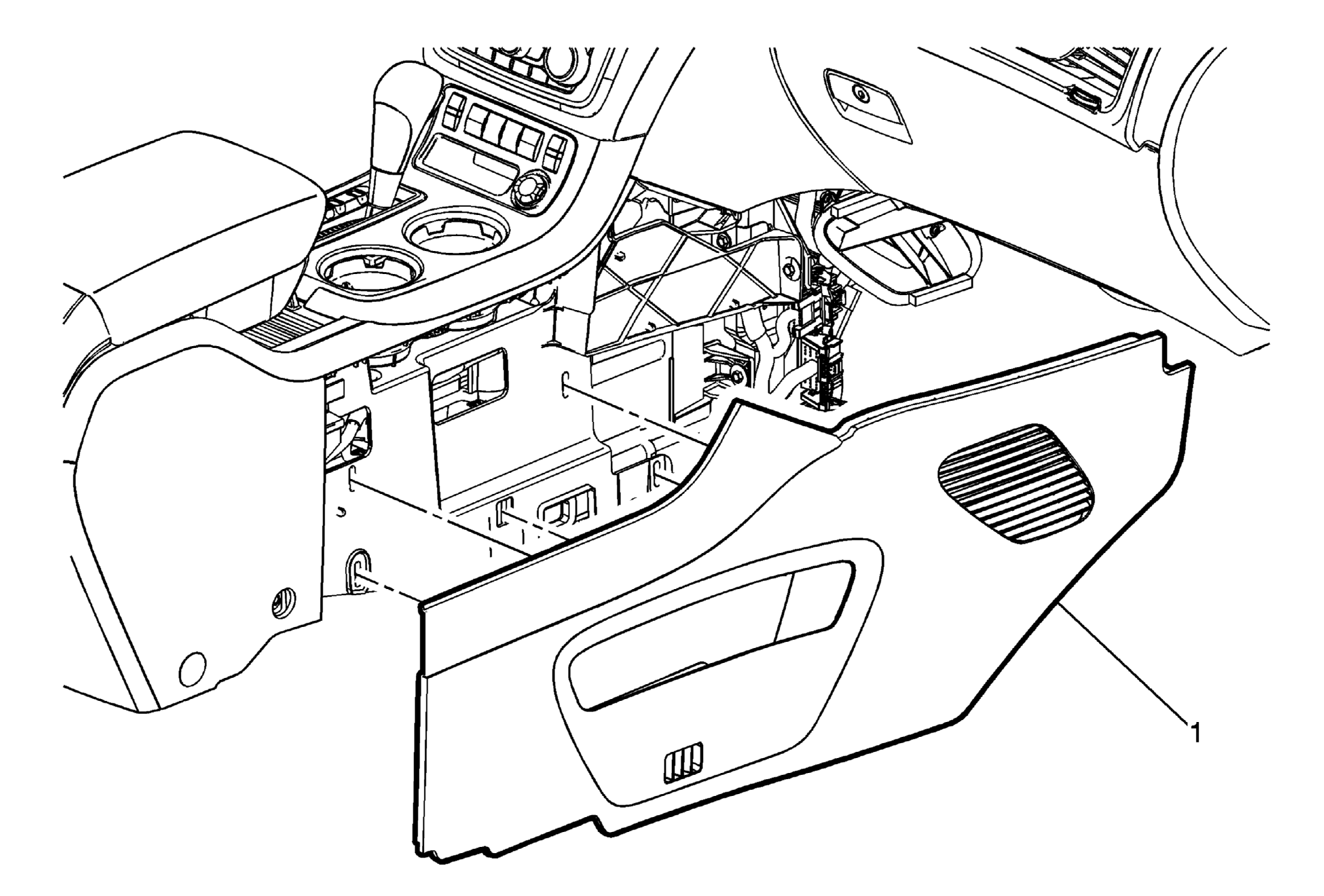

Fig 1: Front Floor Console Extension Panel - Right Side (Acadia)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right front seat. Refer to Bucket Seat Removal and Installation .
1	Front Floor Console Extension Panel - Right Side CAUTION: Failure to remove the respective front seats will result in damage to the front floor console extension panel. Procedure Use a flat bladed plastic trim tool to release the extension panel from the front floor console.
