Front Floor Console Extension Panel Replacement - Left Side (Traverse)

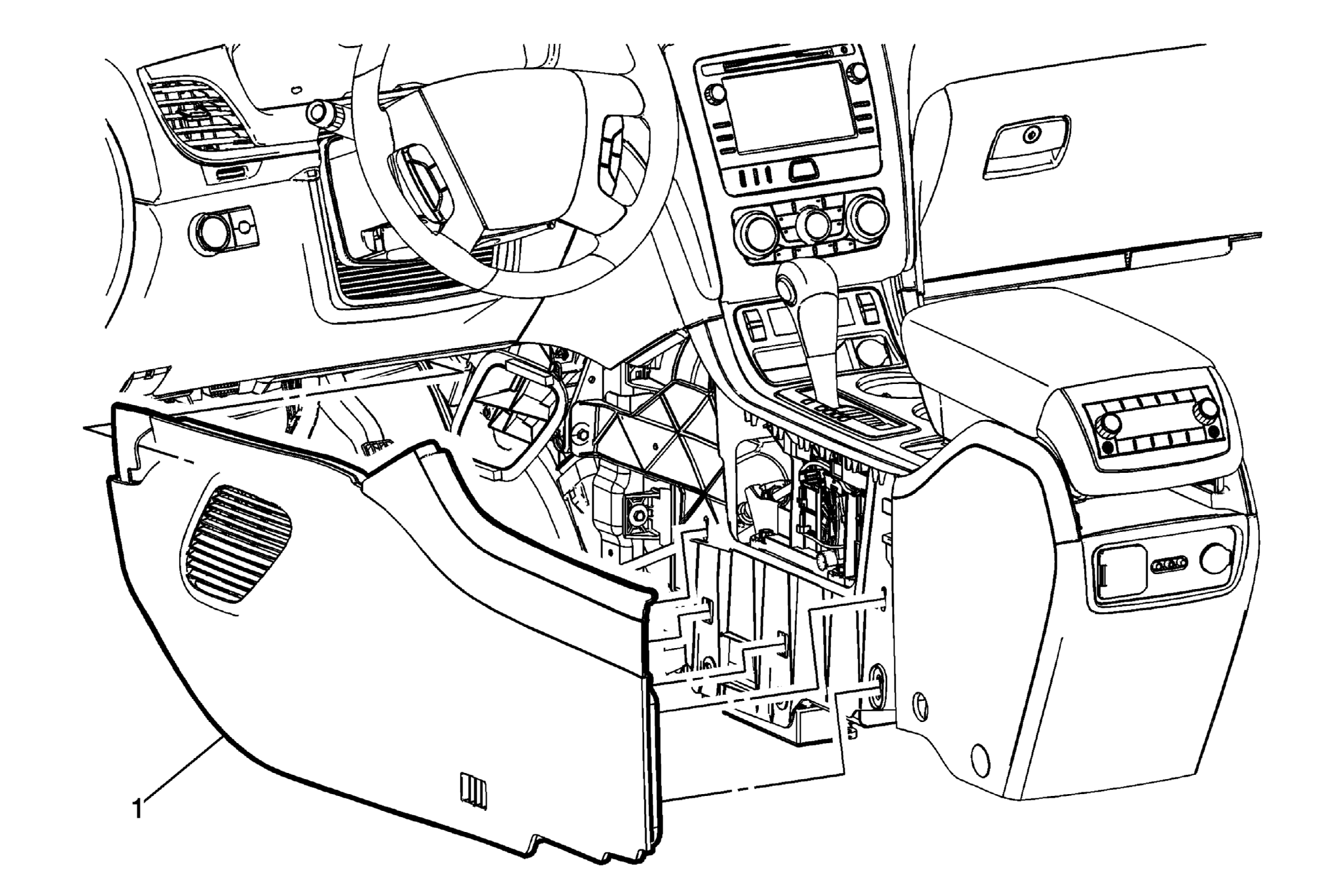

Fig 1: Front Floor Console Extension Panel - Left Side (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left front seat. Refer to Bucket Seat Removal and Installation .
1	Front Floor Console Extension Panel - Left Side CAUTION: Failure to remove the respective front seats will result in damage to the front floor console extension panel. Procedure Grasp the front floor console extension panel and pull outward releasing the clips securing the extension panel to the console assembly.
