Driver Knee Bolster Replacement (Traverse)

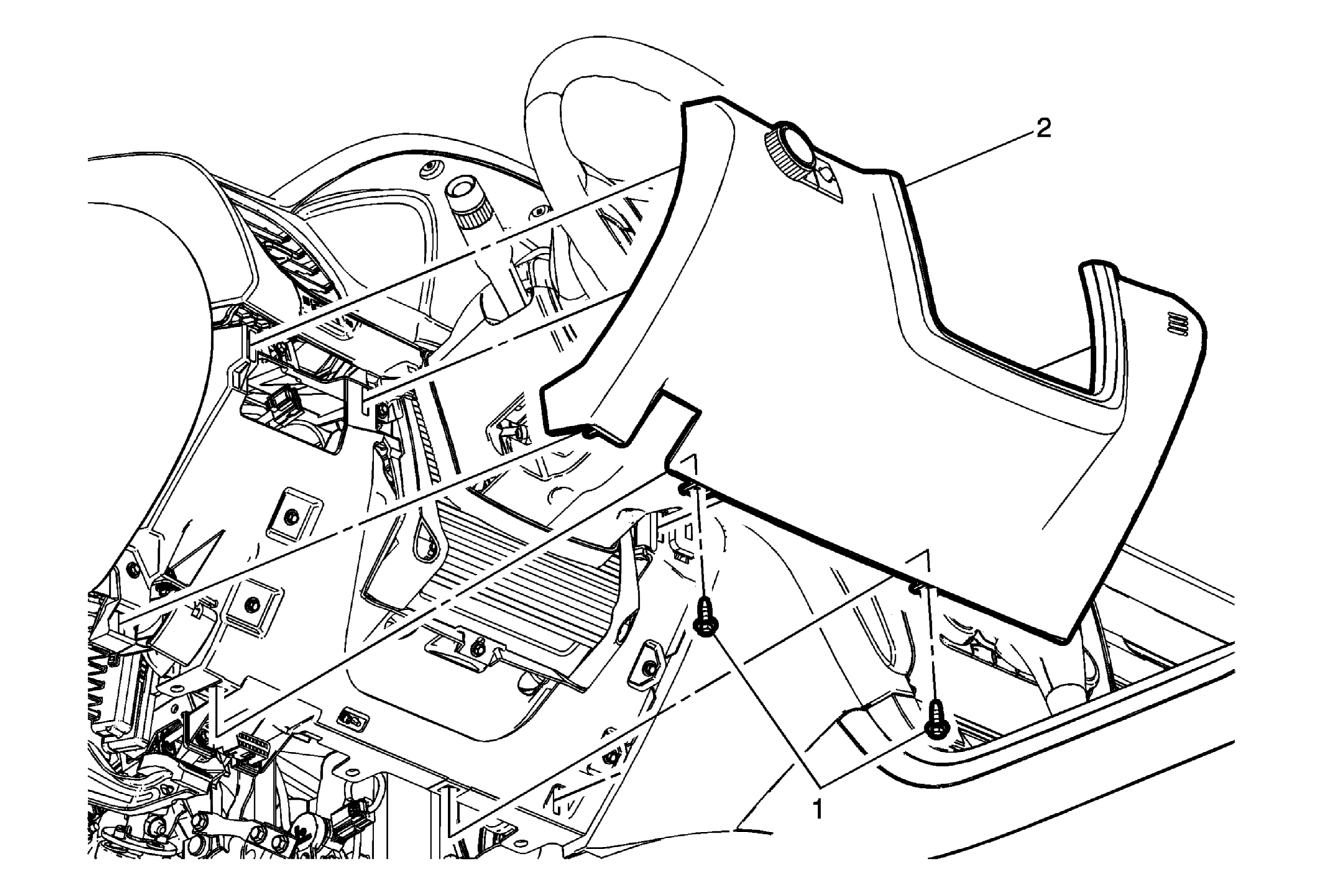

Fig 1: Driver Knee Bolster (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
1	Driver Knee Bolster Screw (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Drivers Knee Bolster Assembly Procedure Disconnect the electrical connections. When replacing the drivers knee bolster, transfer all necessary components.

Callout

Component Name

Preliminary Procedure
Remove the left instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .

Driver Knee Bolster Screw (Qty: 2)

CAUTION:

Drivers Knee Bolster Assembly

Procedure
