Driver Information System Wiring Schematics: W49

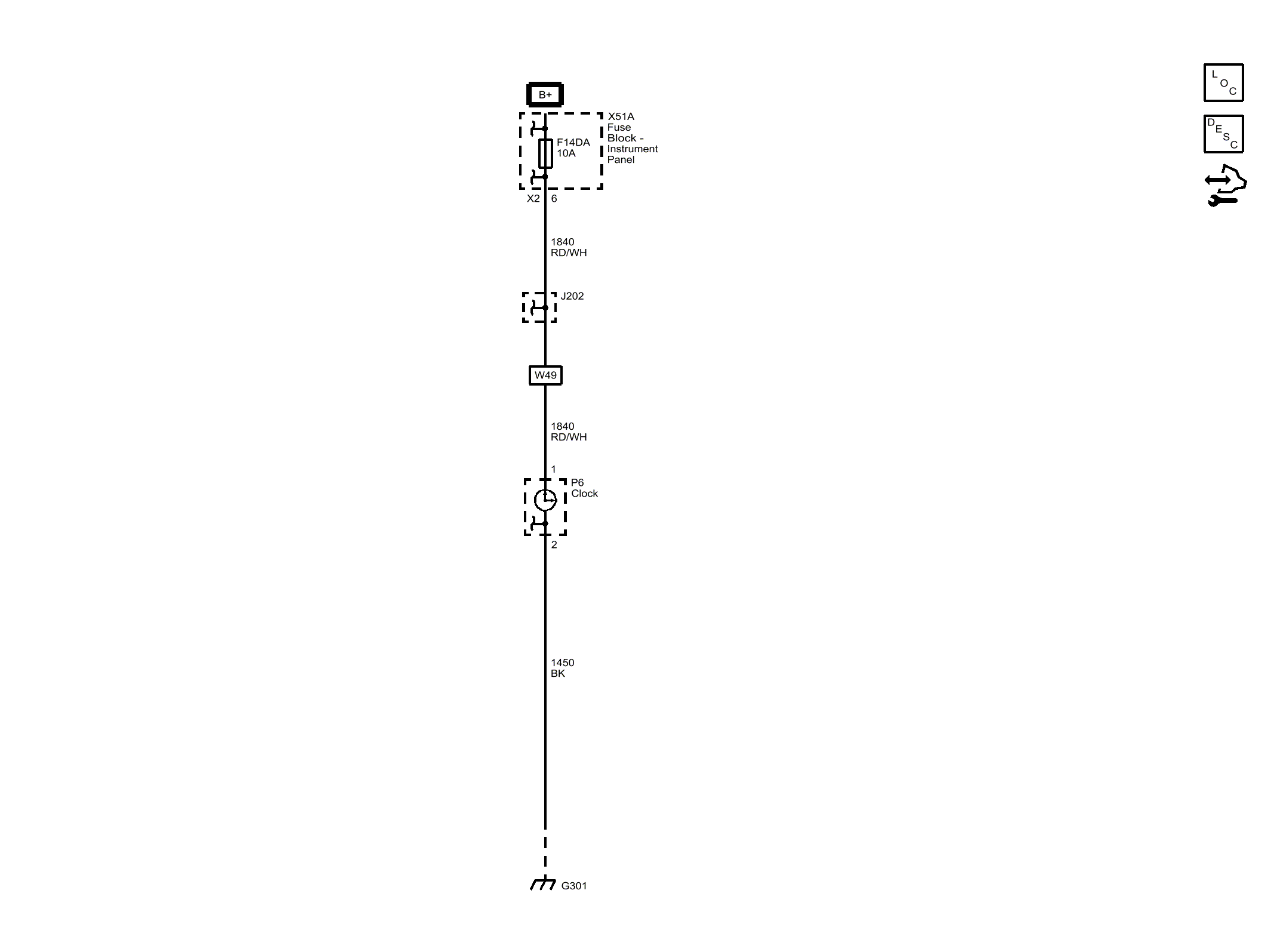

Fig 1: W49

GM4405832

Courtesy of GENERAL MOTORS COMPANY
