Instrument Cluster Wiring Schematics: Gauges

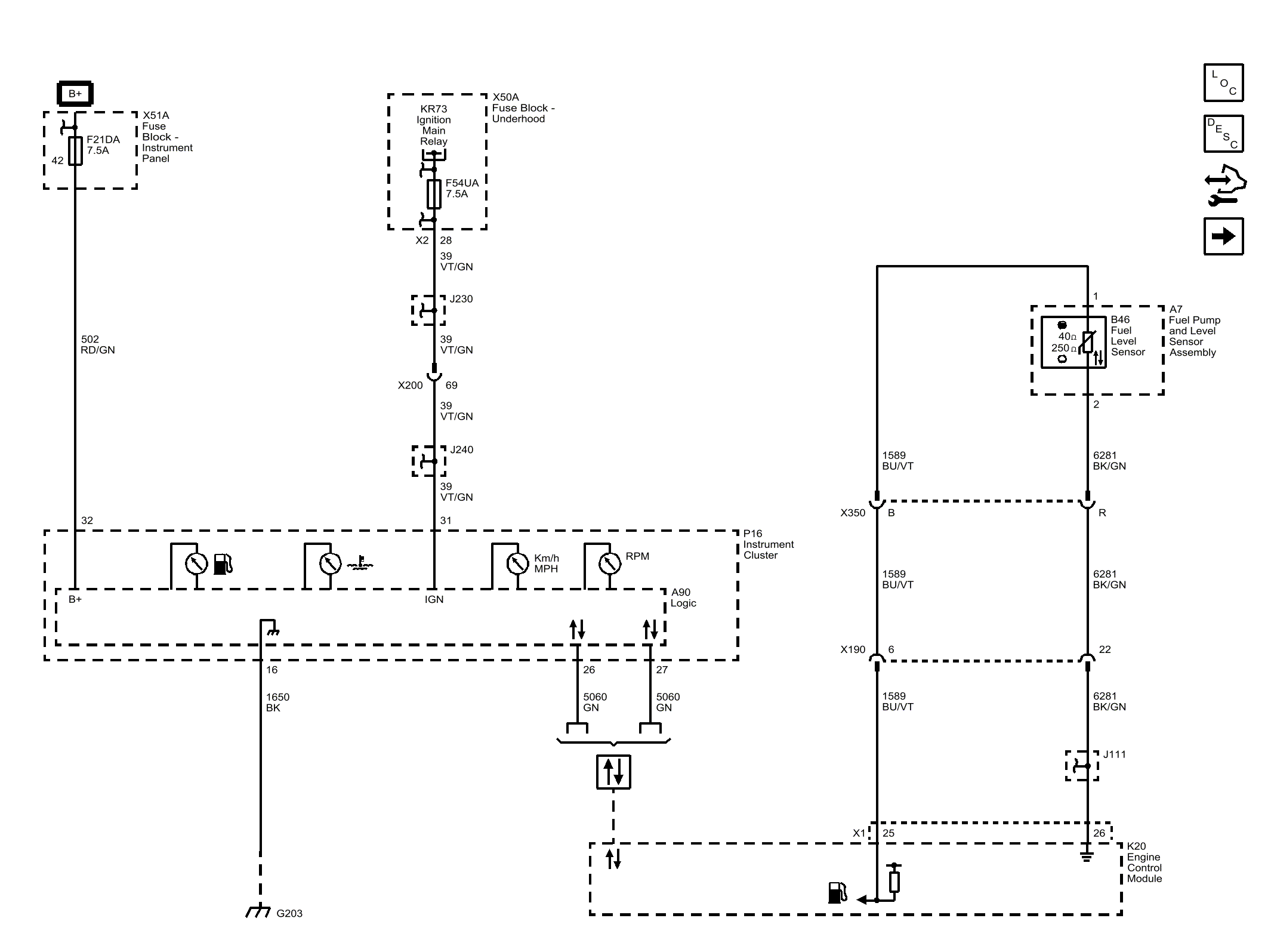

Fig 1: Gauges

GM4082275

Courtesy of GENERAL MOTORS COMPANY
