Ambient Air Temperature Sensor and Driver Information Center Display

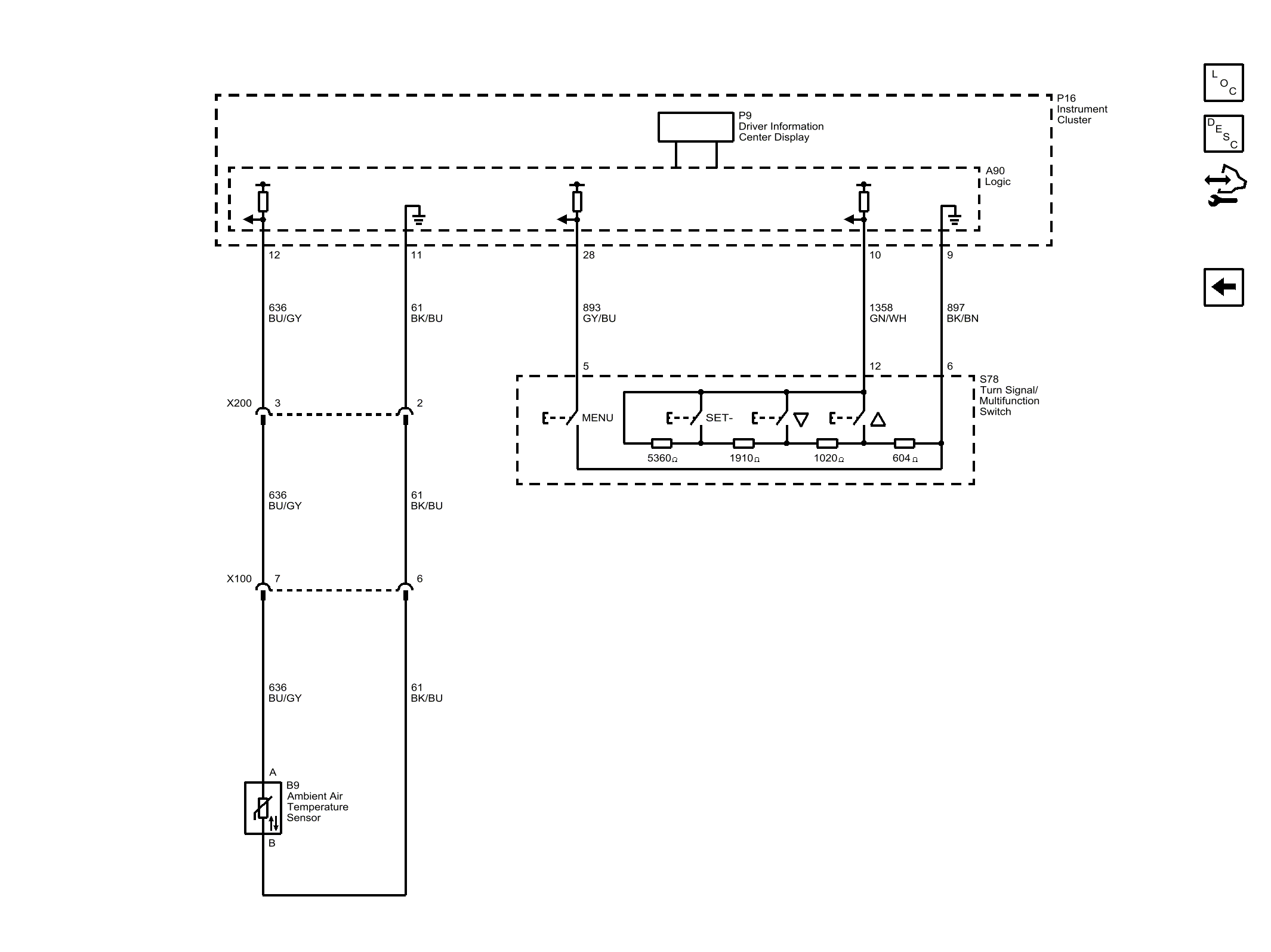

Fig 1: Ambient Air Temperature Sensor and Driver Information Center Display

GM4082272

Courtesy of GENERAL MOTORS COMPANY
