Internal Mode Switch and Tap Up/Tap Down Switches

WARNING: This page is about a different car, the 2015 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

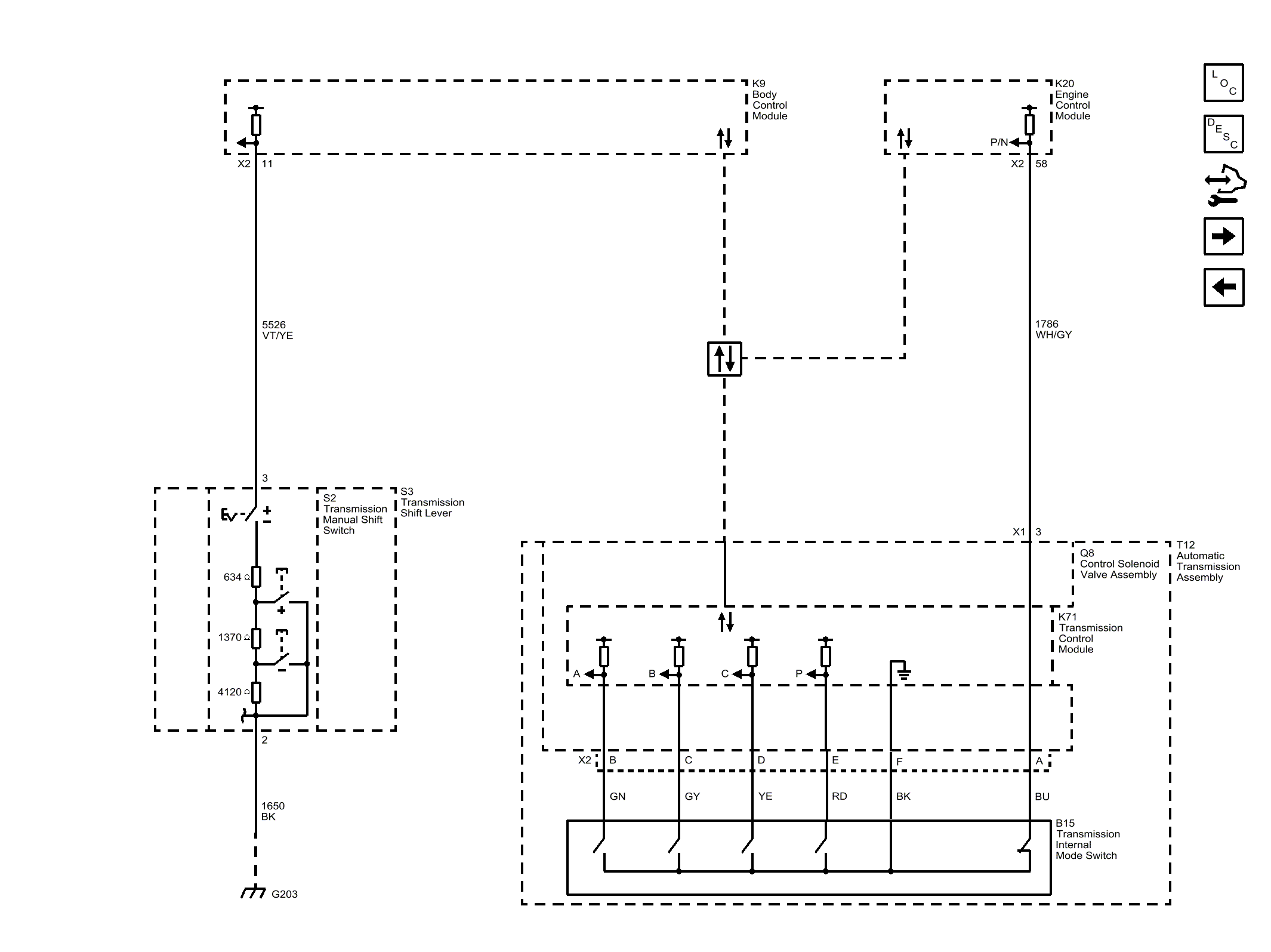

Fig 1: Internal Mode Switch and Tap Up/Tap Down Switches
GM3802222Courtesy of GENERAL MOTORS COMPANY
