Fluid Temperature and Speed Sensors, Valve Position, Pressure and Shift Controls

WARNING: This page is about a different car, the 2015 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

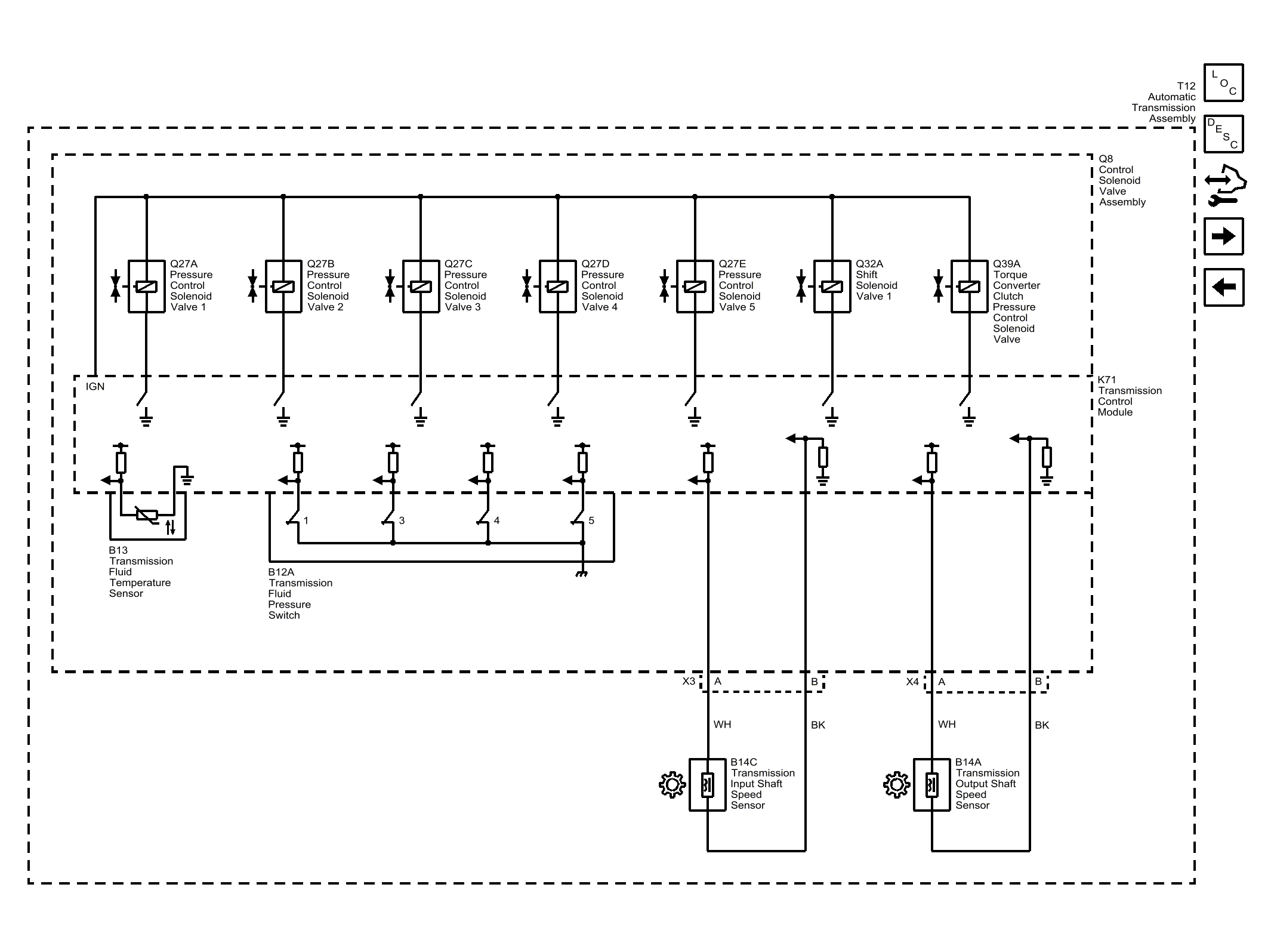

Fig 1: Fluid Temperature and Speed Sensors, Valve Position, Pressure and Shift Controls
GM3802225Courtesy of GENERAL MOTORS COMPANY
