Front Floor Console Front Cover Replacement

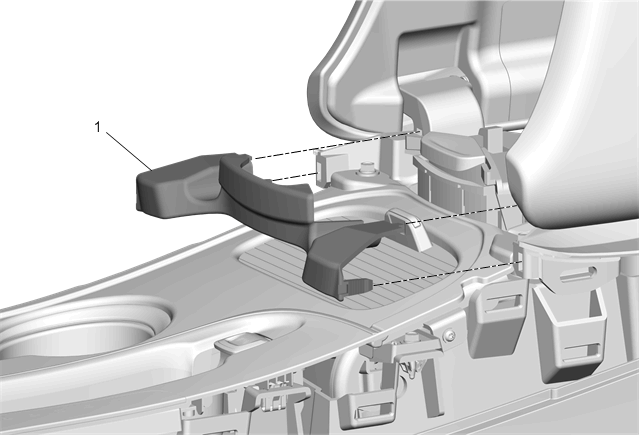

Fig 1: Front Floor Console Front Cover
GM3816024Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Floor Console Applique Replacement - Left Side
  2. Front Floor Console Applique Replacement - Right Side
1 Front Floor Console Front Cover

Procedure

  1. Release the retaining tabs.
  2. Use a flat bladed plastic trim tool.
