Instrument Cluster Wiring Schematics: Indicators

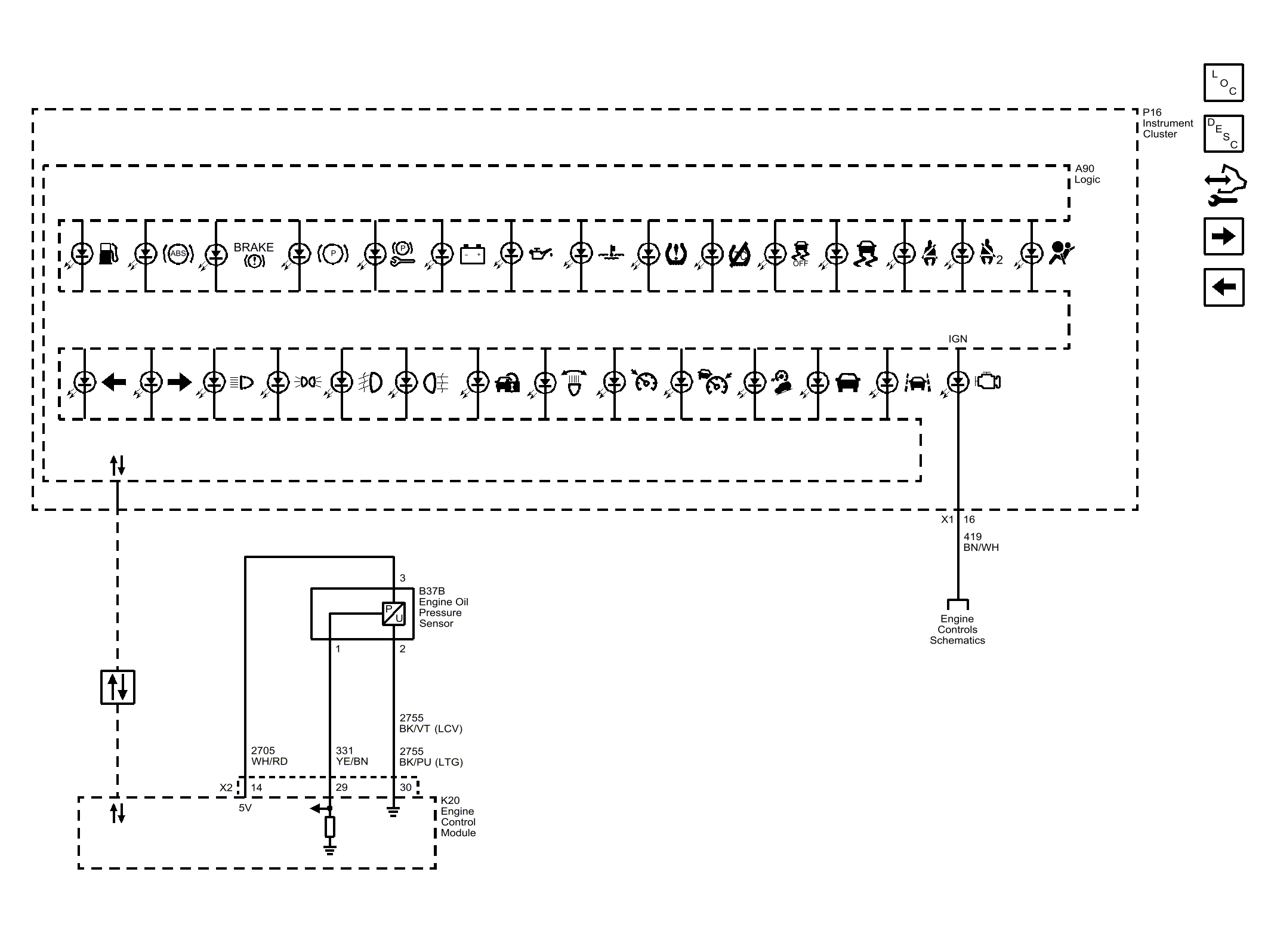

Fig 1: Indicators

GM3996927

Courtesy of GENERAL MOTORS COMPANY
