Air Temperature and Driver Information Center

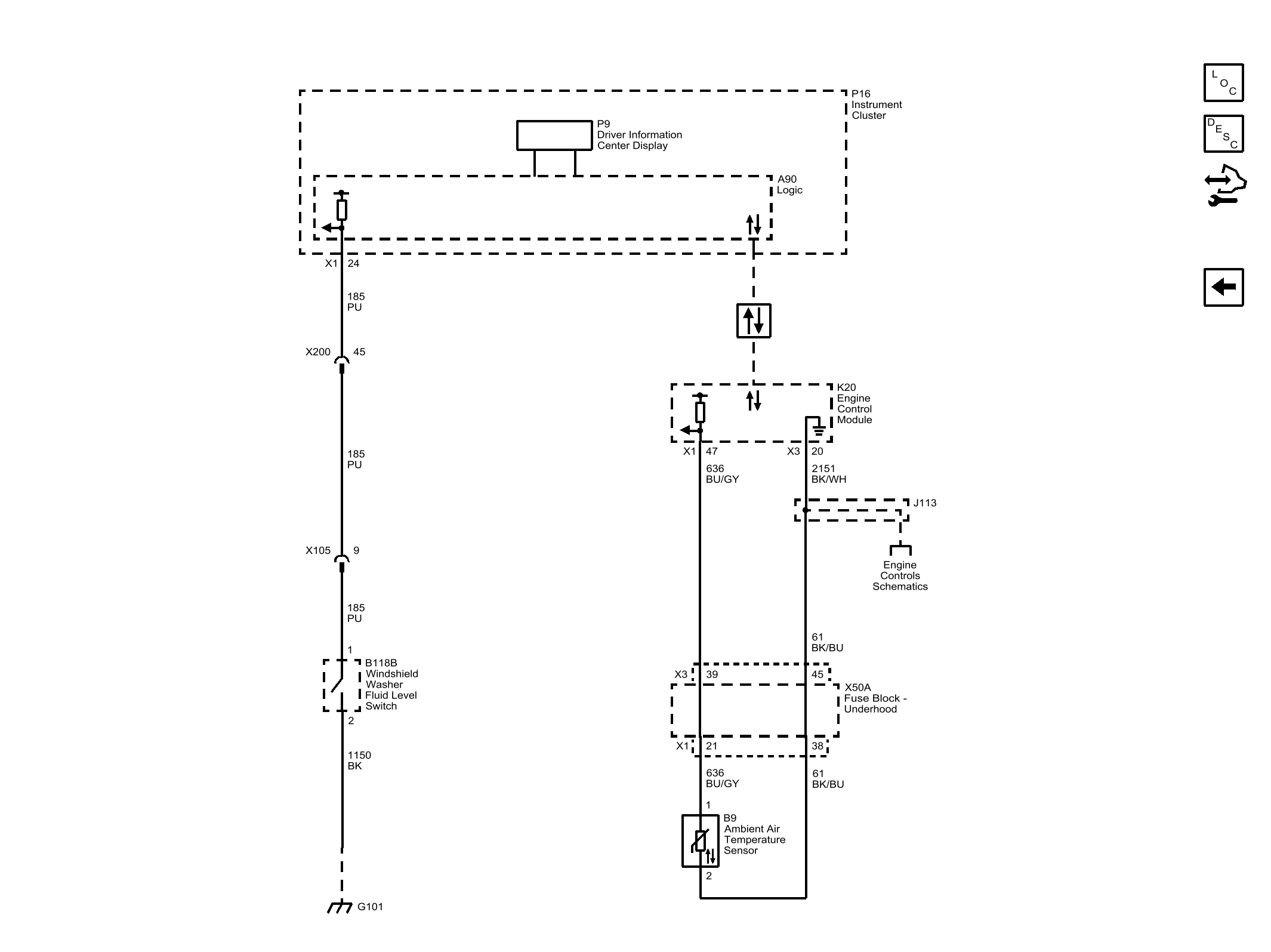

Fig 1: Air Temperature and Driver Information Center

GM3996929

Courtesy of GENERAL MOTORS COMPANY
