Driver Information System Wiring Schematics: Clock

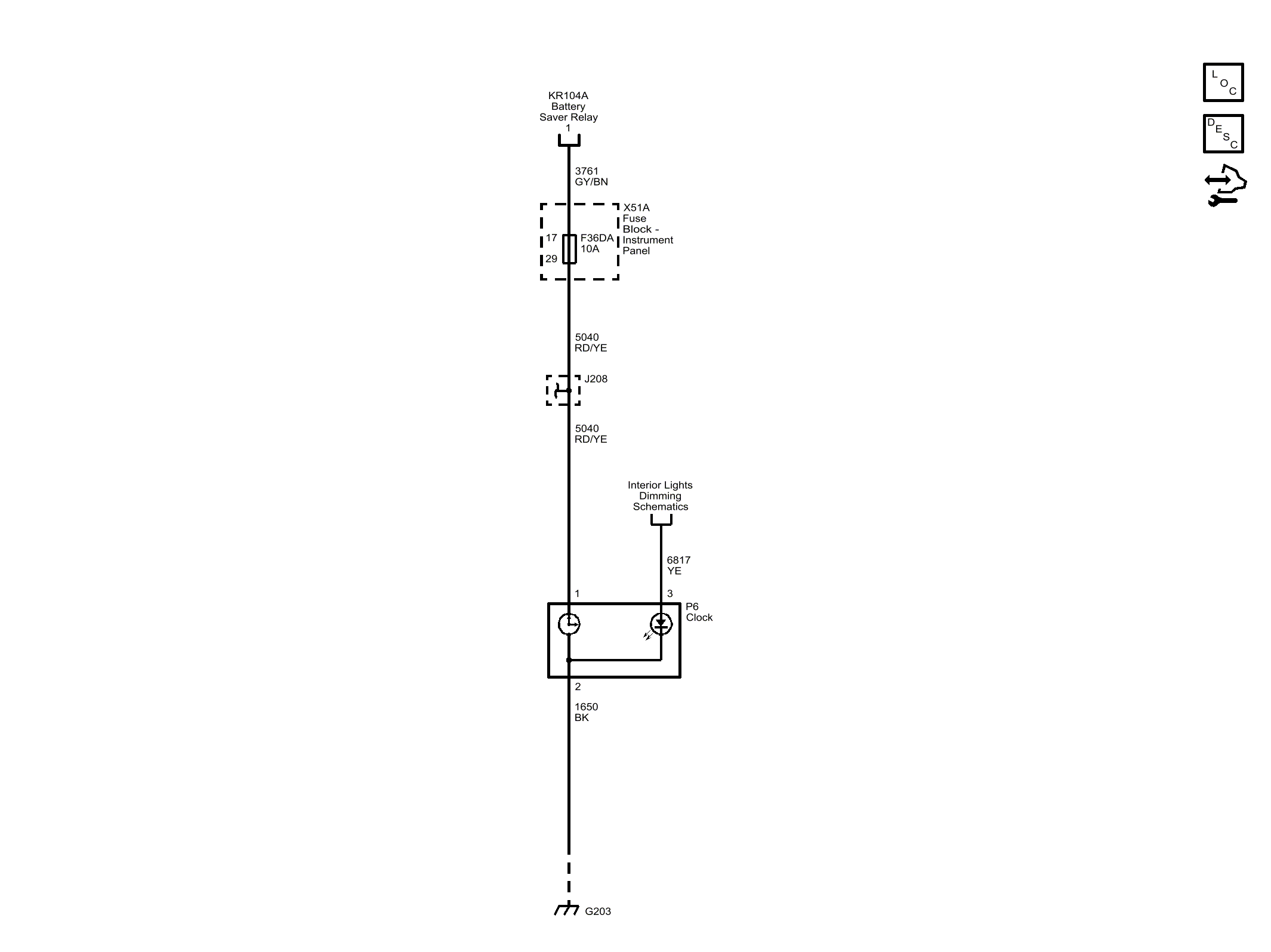

Fig 1: Clock

GM4069956

Courtesy of GENERAL MOTORS COMPANY
