K61 Sunroof Control Module
WARNING: This page is about a different car, the 2015 Chevrolet Trax. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13582265 | J-35616-35 (VT) | J-38125-36 | Not Available | Not Available | Not Available | Not Available |
| II | 19331559 | J-35616-64B (LT BU) | J-38125-12A | Not Available | Not Available | Not Available | Not Available |

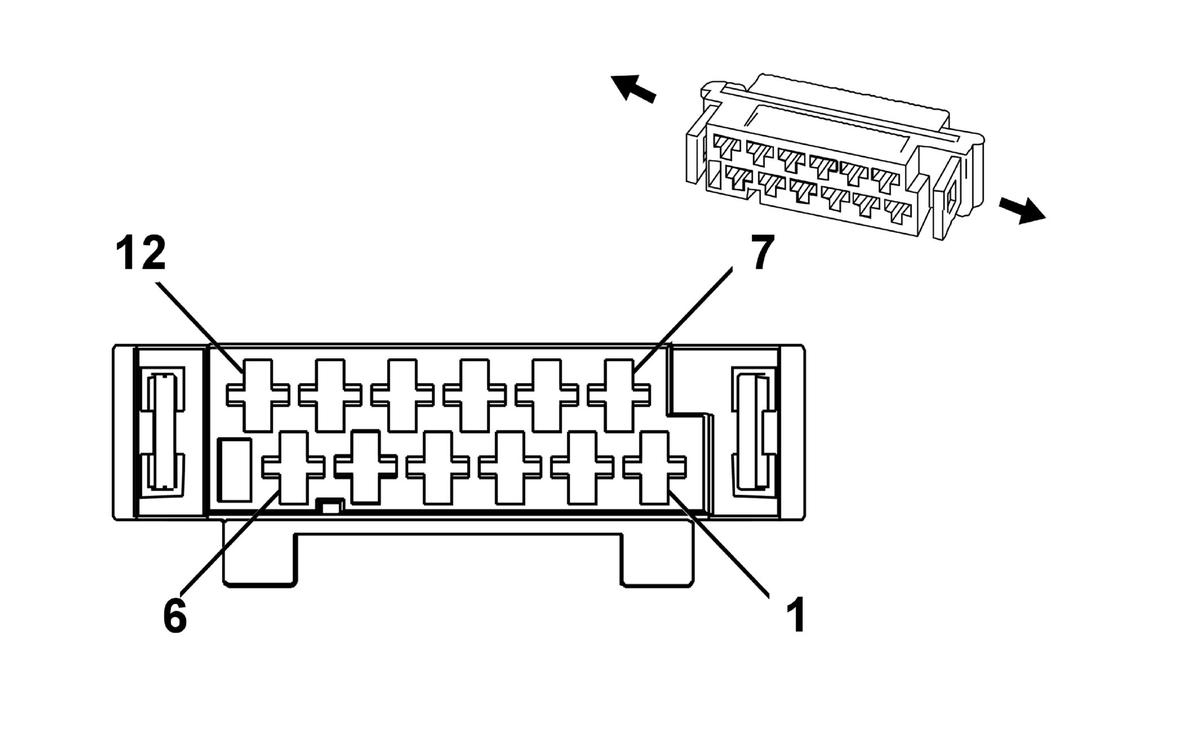

| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 1 | RD/WH | 2740 | Battery Positive Voltage | II | - |
| 2 | 1 | BK | 850 | Ground | II | - |
| 3 | 0.5 | BK/GY | 128 | Sunroof Switch Low Reference | II | - |
| 4 | 0.5 0.35 |
GN/BN GN/BN |
6132 6132 |
Local Interconnect Network Serial Data Bus 1 | II I |
- DD8/UE1/UEV-MAH |
| 5 | 0.5 | BU/VT | 5027 | Sunroof Switch Data (1) Signal | II | - |
| 6 | 0.5 | WH/GN | 3031 | Sunroof Vent Switch Signal | II | - |
| 7 - 12 | - | - | - | Not Occupied | - | - |
