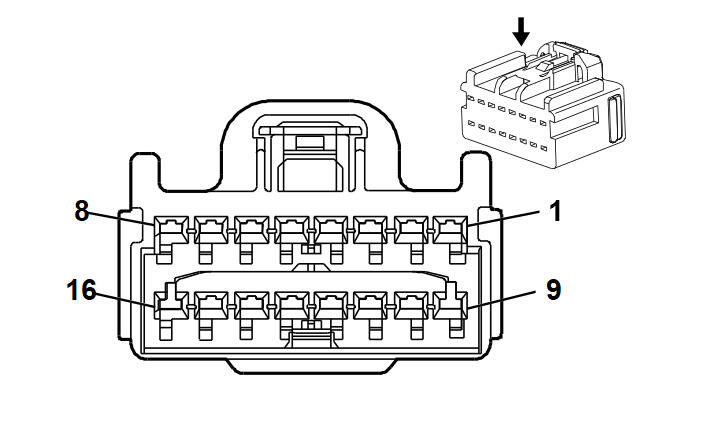

K29 Seat Heating Control Module X2
WARNING: This page is about a different car, the 2015 Chevrolet Trax. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 7283-6453-60
- Service Connector: Service by Harness - See Part Catalog
- Description: 16-Way F 1.5 Kaizen Series (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Available |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
VT/BK |
2424 |
Driver Heated Back Element Low Reference |
I |
2H0 |
| 2 |
1 |
BU/BK |
2433 |
Passenger Heated Back Element Low Reference |
I |
- |
| 3 |
1 |
BN/VT |
2077 |
Driver Heated Seat Element Control |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
1 |
BN/BU |
2479 |
Passenger Heated Seat Element Control |
I |
- |
| 6 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
0.5 |
BK/YE |
2080 |
Driver Heated Seat NTC Low Reference |
I |
- |
| 14 |
0.5 |
BK/GY |
2435 |
Passenger Heated Seat NTC Low Reference |
I |
- |
| 15 - 16 |
- |
- |
- |
Not Occupied |
- |
- |
