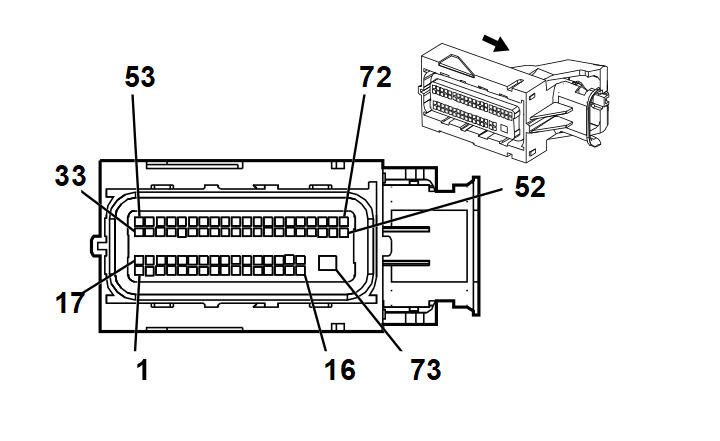

K20 Engine Control Module X3 (LUV)

WARNING: This page is about a different car, the 2015 Chevrolet Trax. However, it is still accessible from the selected car via links, so may be relevant.

Connector Part Information

Harness Type: Engine
OEM Connector: 34566-5013
Service Connector: 13574948
Description: 73-Way F 0.64, 2.8 Series, Sealed (BK with GY Terminal Postion Assurance)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575812	J-35616-16 (LT GN)	J-38125-213	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	GN/WH	5007	Reverse Switch Signal	I	-
2 - 9	-	-	-	Not Occupied	-	-
10	0.5	GN/BU	428	EVAP Canister Purge Solenoid Control	I	-
11 - 12	-	-	-	Not Occupied	-	-
13	0.75	GN	3060	Turbo Bypass Solenoid Control Bank (1)	I	-
14	-	-	-	Not Occupied	-	-
15	0.75	YE	3058	Turbo Waste Gate Solenoid Control Bank (1)	I	-
16	-	-	-	Not Occupied	-	-
17	0.5	GY	23	Generator Field Duty Cycle Signal	I	-
18	-	-	-	Not Occupied	-	-
19	0.5	WH/BK	3097	Output Speed (Digital) Sensor Low Reference	I	-
20 - 21	-	-	-	Not Occupied	-	-
22	0.5 0.5	BK/YE BK/GY	5382 6110	Brake Position Sensor Low Reference Clutch Apply Sensor Low Reference	I	- -
23 - 26	-	-	-	Not Occupied	-	-
27	0.5	BK/GN	6281	Fuel Level Sensor Low Reference	I	-
28	0.5	GY/RD	2704	Manifold Absolute Pressure Sensor 5 Volt Reference	I	-
29	0.5	BK/GN	469	Manifold Absolute Pressure Sensor Low Reference	I	-
30	0.5	BK/BN	2761	Coolant Temperature Sensor Low Reference	I	-
31	-	-	-	Not Occupied	-	-
32	0.5	GY/WH	3122	Heated Oxygen Sensor Heater Low Control Bank 1 Sensor (2)	I	-
33 - 34	-	-	-	Not Occupied	-	-
35	0.5	GY/BK	3096	Output Speed (Digital) Sensor 5 Volt Reference	I	-
36 - 37	-	-	-	Not Occupied	-	-
38	0.5 0.5	WH/RD GY/RD	5381 6109	Brake Position Sensor 5 Volt Reference Clutch Apply Sensor 5 Volt Reference	I	- -
39 - 42	-	-	-	Not Occupied	-	-
43	0.5	YE/RD	2709	Fuel Tank Pressure Sensor 5 Volt Reference	I	-
44	0.5	BU/WH	1937	Secondary Fuel Level Sensor Signal	I	-
45	0.5	GN/WH	432	Manifold Absolute Pressure Sensor Signal	I	-
46	0.5	BU	410	Engine Coolant Temperature Sensor Signal	I	-
47 - 54	-	-	-	Not Occupied	-	-
55	0.5	GN	3098	Output Speed (Digital) Signal	I	-
56 - 57	-	-	-	Not Occupied	-	-
58	0.5 0.5	WH/GN YE	5380 6111	Brake Position Sensor Signal Clutch Apply Sensor Signal	I	- -
59 - 62	-	-	-	Not Occupied	-	-
63	0.5	BU/WH	890	Fuel Tank Pressure Sensor Signal	I	-
64	0.5	BU/VT	1589	Primary Fuel Level Sensor Signal	I	-
65 - 66	-	-	-	Not Occupied	-	-
67	0.5	VT/BU	3120	Heated Oxygen Sensor High Signal Bank 1 Sensor (2)	I	-
68	0.5	WH/YE	3121	Heated Oxygen Sensor Low Signal Bank 1 Sensor (2)	I	-
69 - 73	-	-	-	Not Occupied	-	-
