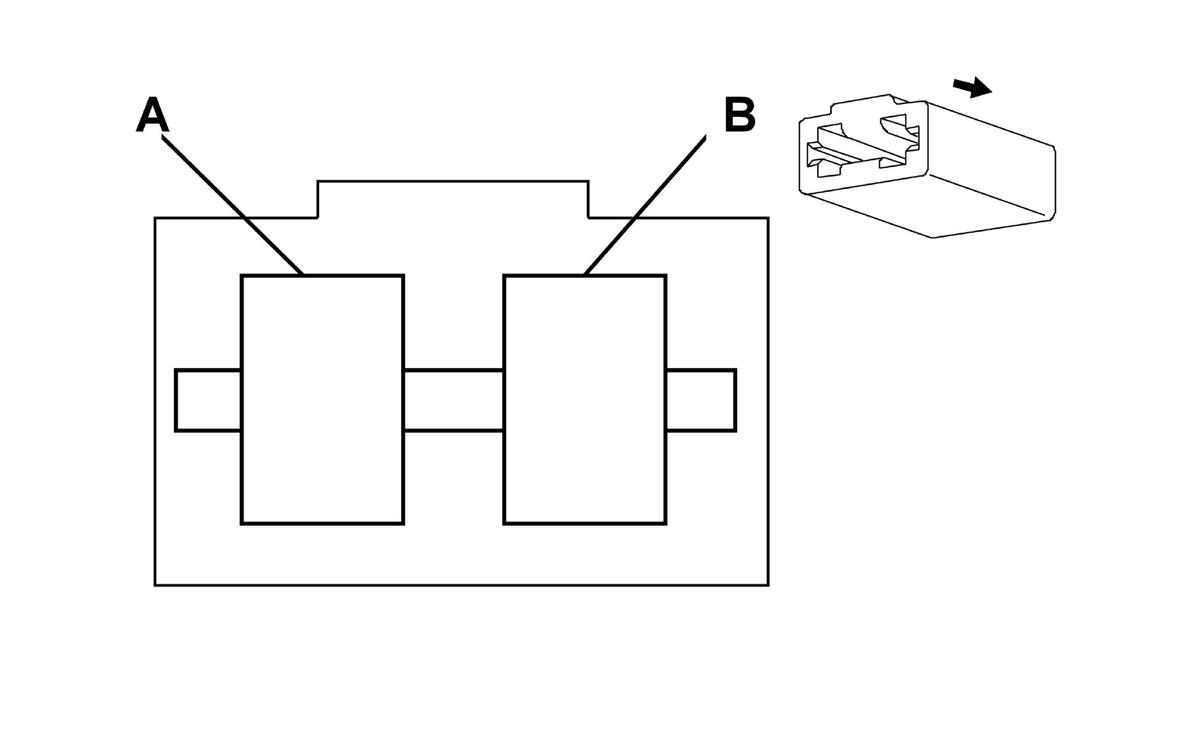

X55AF Fuse Holder - Engine Control Module
|
|
Connector Part Information
- Harness Type: Battery Cable
- OEM Connector: 12010105
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F Fuseblock Components, Fuse Holders, Autofuse Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
1 |
RD |
1 |
Unfused Battery Positive Voltage |
I |
- |
| B |
1 |
RD |
540 |
Battery Positive Voltage |
I |
- |
