Instrument Cluster Wiring Schematics: Gauges

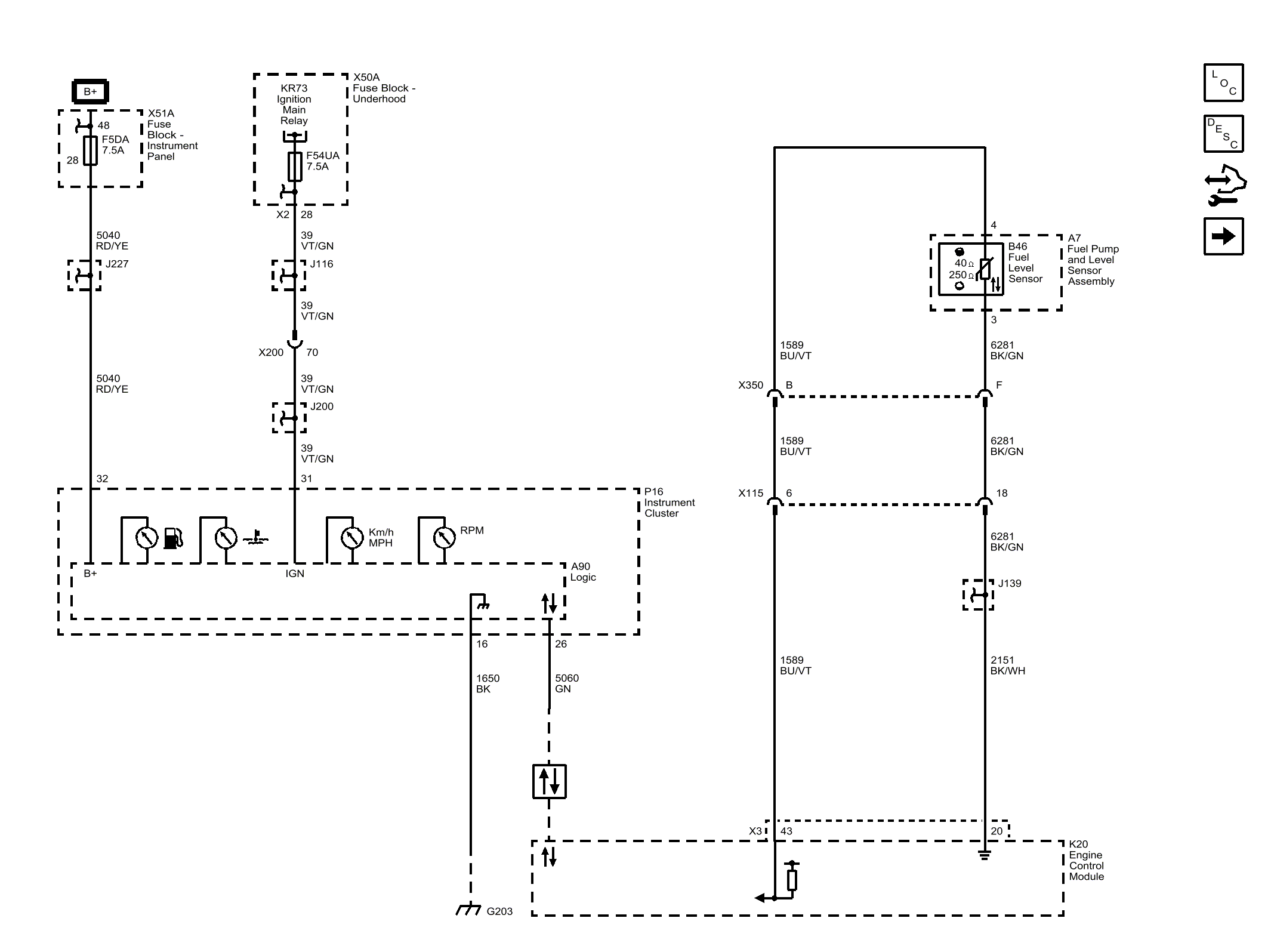

Fig 1: Gauges

GM4212398

Courtesy of GENERAL MOTORS COMPANY
