Ambient Air Temperature Sensor and Driver Information

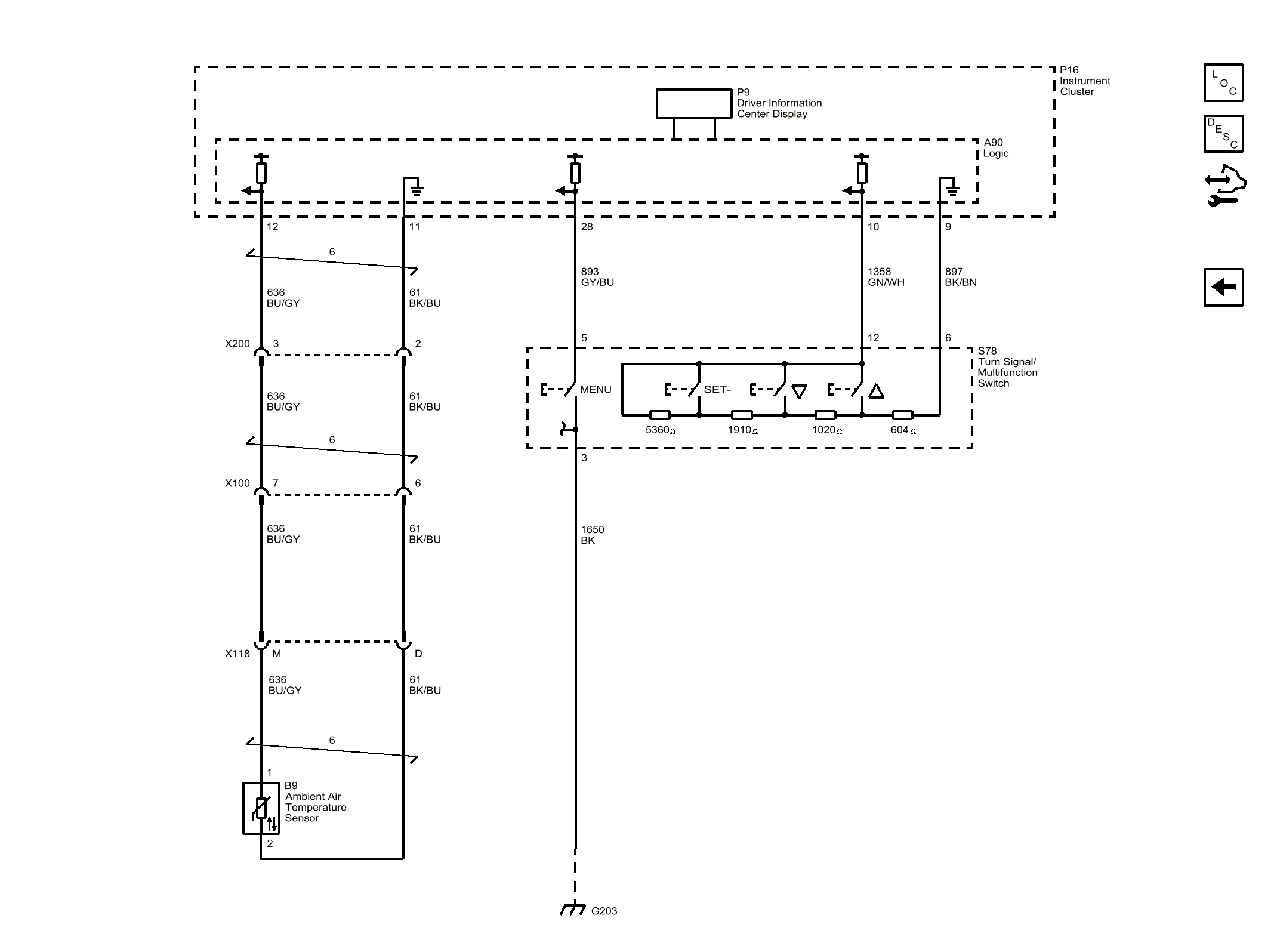

Fig 1: Ambient Air Temperature Sensor and Driver Information

GM4212401

Courtesy of GENERAL MOTORS COMPANY
