Section 4 (Engine Controls And Fuel - 2.4L (Lea) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Ignition Controls - Ignition System
Ignition Controls - Ignition System
WARNING:
This page is about a different variant/trim than selected.

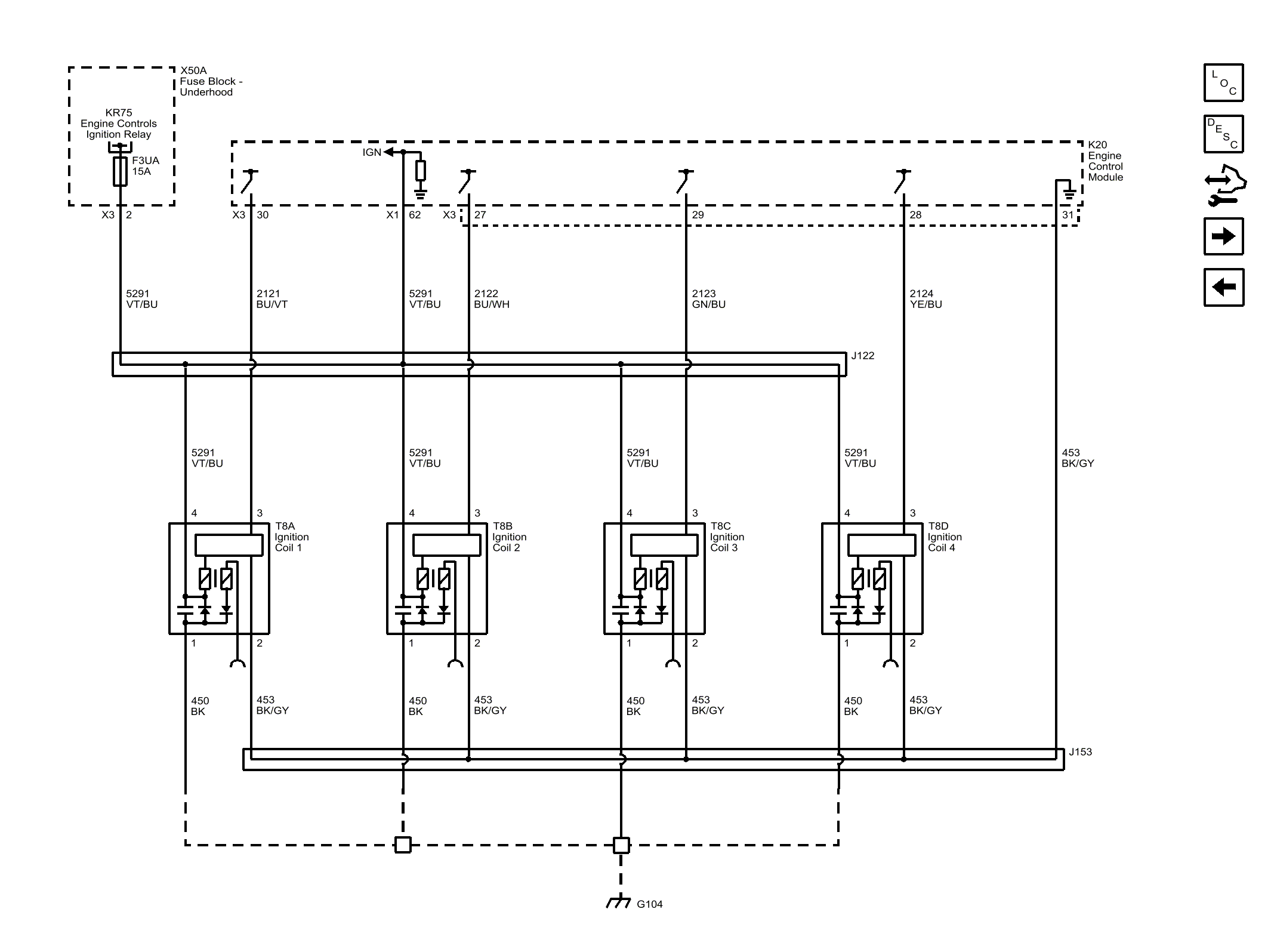

Fig 1: Ignition Controls - Ignition System
Courtesy of GENERAL MOTORS COMPANY
