5V1, 5V2, 5V3, 5V4, and Low Reference Bus (1 of 2)

WARNING: This page is about a different variant/trim than selected.

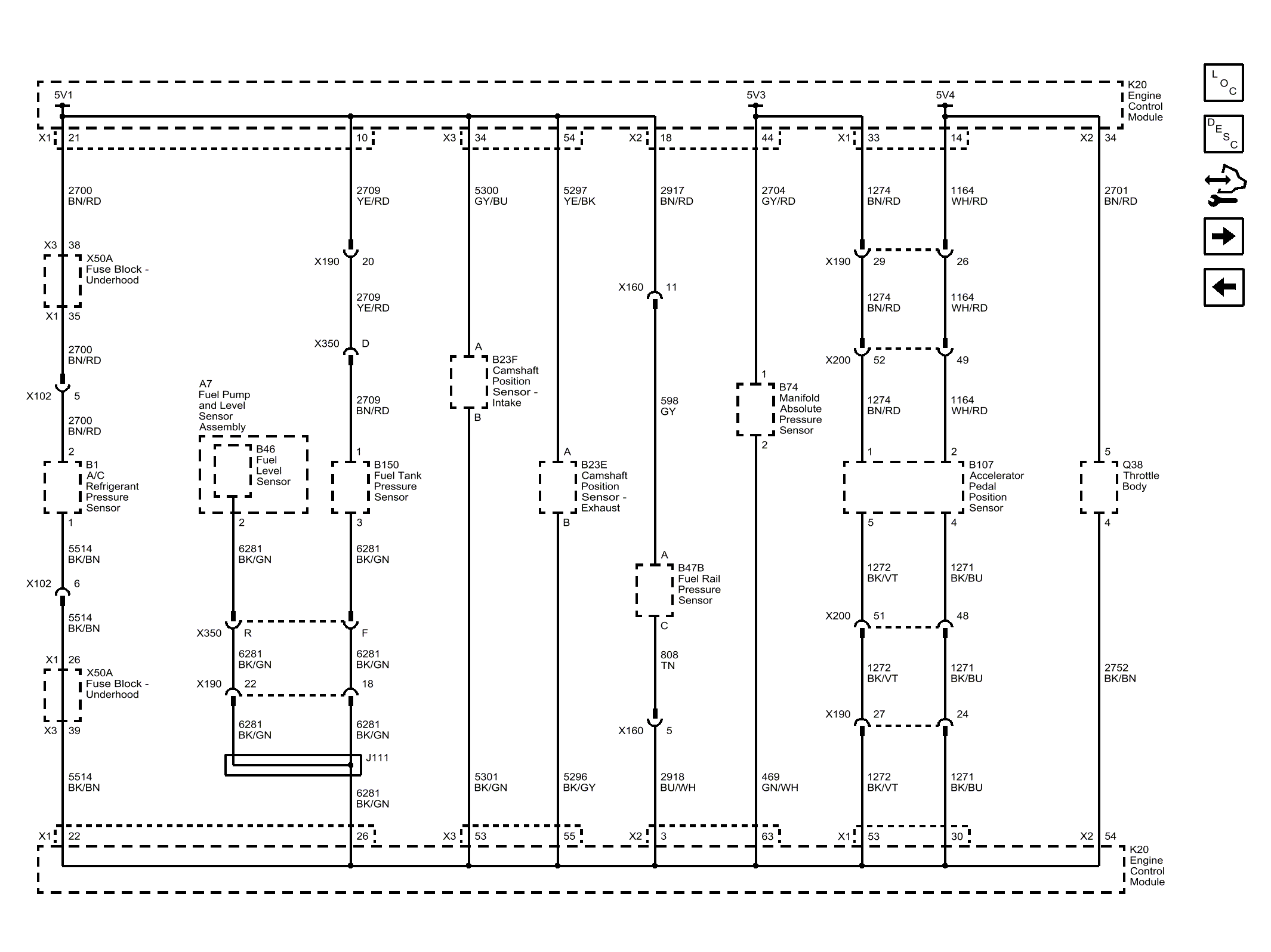

Fig 1: 5V1, 5V2, 5V3, 5V4, and Low Reference Bus (1 of 2)
GM3802062Courtesy of GENERAL MOTORS COMPANY
