Air Cleaner Assembly Replacement
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY

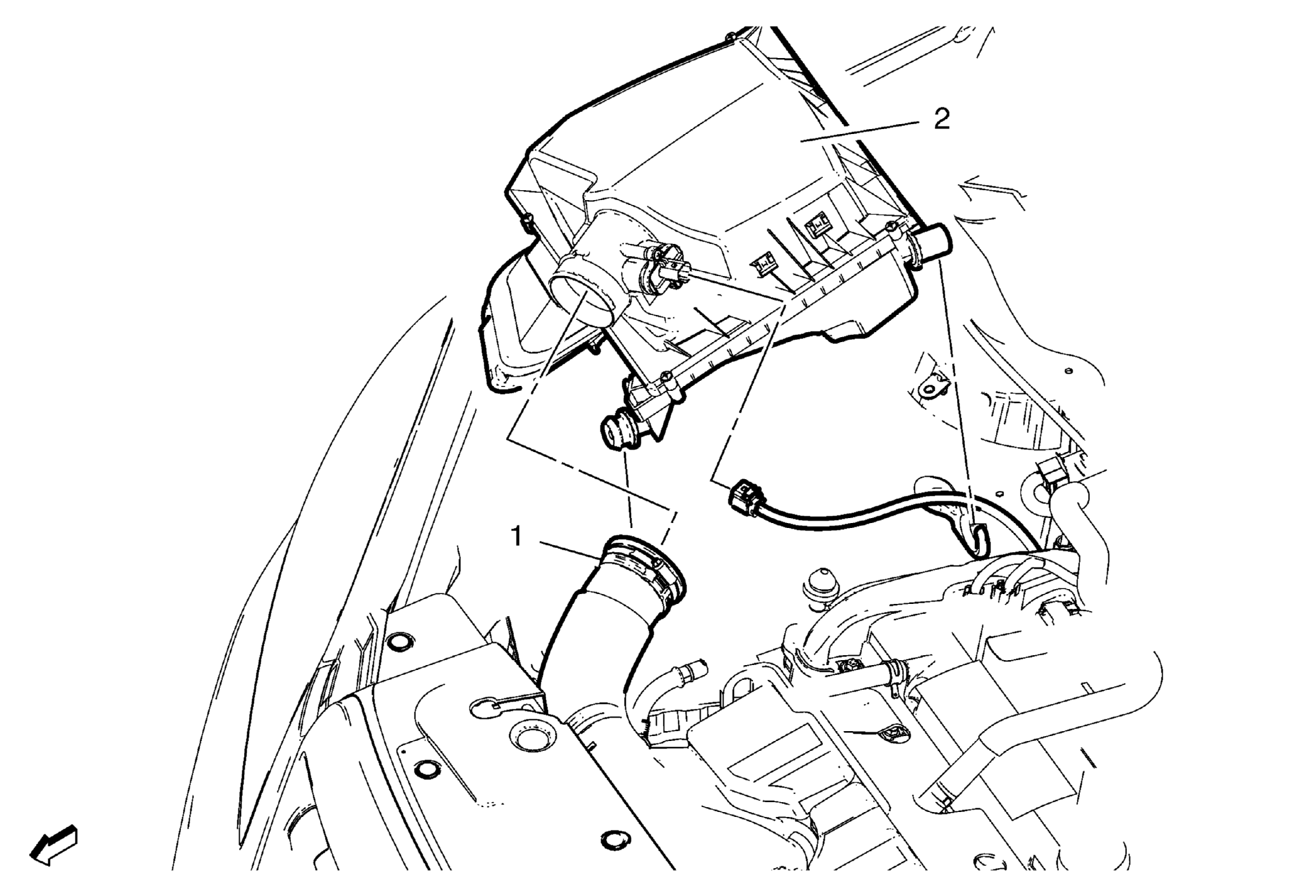

| Callout |
Component Name |
| 1 |
Air Cleaner Outlet Duct
Procedure
Loosen the clamp and disconnect the duct from the air cleaner assembly. |
| 2 |
Air Cleaner Assembly Procedure
- Disconnect the mass air flow sensor electrical connector.
- Disconnect the water drain hose from the air cleaner assembly if equipped.
|
