Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Fig 1: Water Pump and Balance Shaft Chain & Sprocket

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Ensure that the crankshaft is still on TDC combustion stroke of 1 cylinder.

Install the water pump and balance shaft timing chain and the crankshaft sprocket (1).

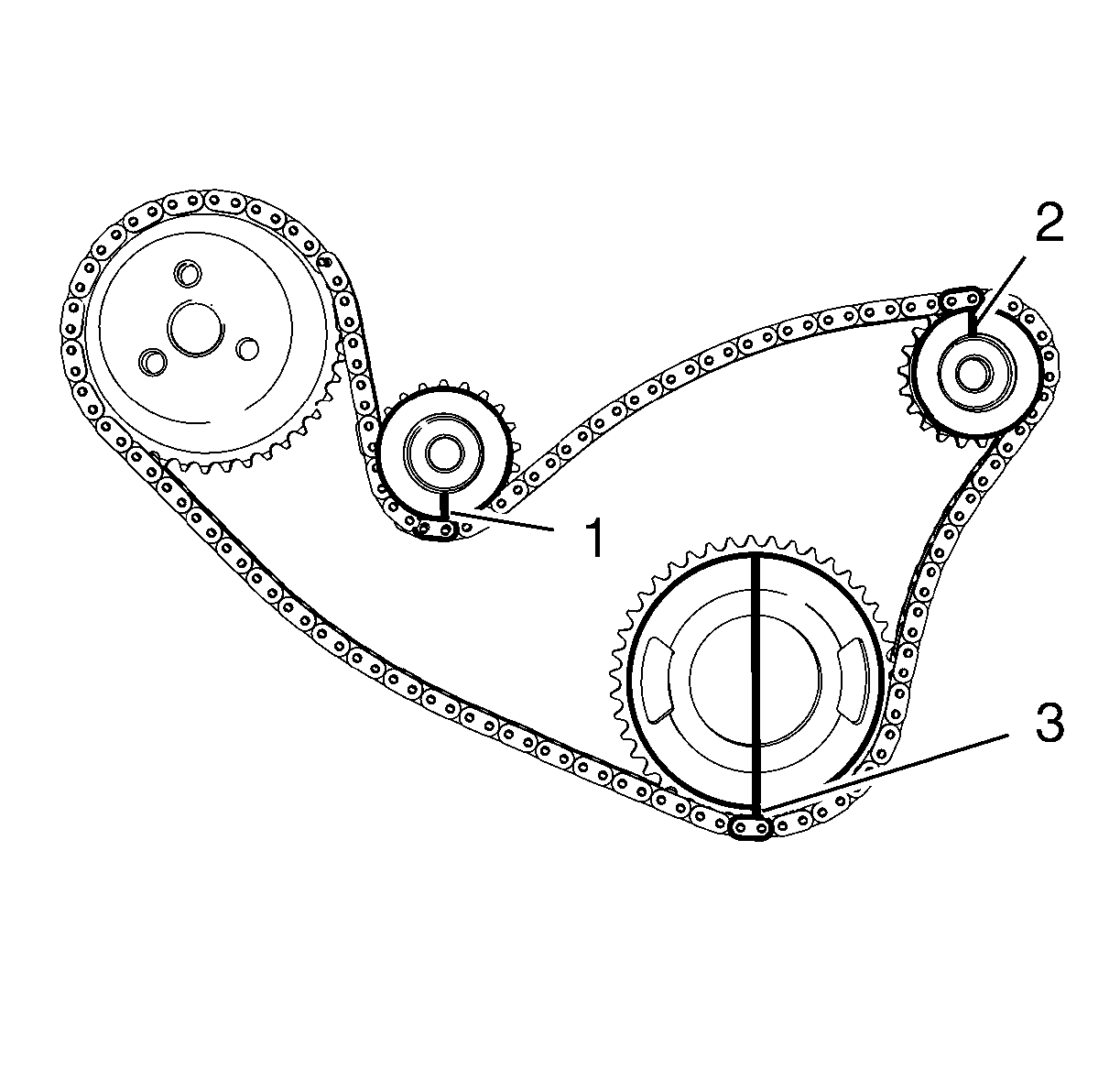

Fig 2: Sprocket Timing Marks

Courtesy of GENERAL MOTORS COMPANY

Use the following procedure to line up the links with the sprockets:
1. Ensure that the balance shaft exhaust side timing mark is at 6 o'clock and the balance shaft intake side is at 12 o'clock.
2. Install the balance shaft drive chain with the colored links lined up on with the marks on the balance shaft drive sprockets and the crankshaft sprocket. There are 3 colored links on the chain. 2 links are a matching color, and 1 link is a unique color.
3. Place the uniquely colored link so that it lines up with the timing mark on the intake side balance shaft sprocket (2).
4. Working clockwise around the chain, place the first matching colored link in line with the timing mark on the crankshaft drive sprocket - approximately at the 6 o'clock position on the crank sprocket (3).
5. Place the timing chain on the water pump sprocket. There is no timing mark.
6. Align the last matching colored link with the timing mark on the exhaust side balance shaft drive sprocket (1).
Install the water pump and balance shaft timing chain guide - lower. Refer to Balancer Chain Guide Replacement - Lower .
Install the water pump and balance shaft timing chain guide - upper. Refer to Balancer Chain Guide Replacement - Upper .
Install the water pump and balance shaft timing chain adjustable guide. Refer to Balancer Chain Adjust Guide Replacement .
Install the water pump and balance shaft timing chain tensioner. Refer to Water Pump and Balance Shaft Chain Tensioner Replacement .
Install the camshaft timing chain. Refer to Camshaft Timing Chain, Sprocket, and Tensioner Replacement .
