Hydraulic Valve Lash Adjuster Replacement

WARNING: This page is about a different variant/trim than selected.

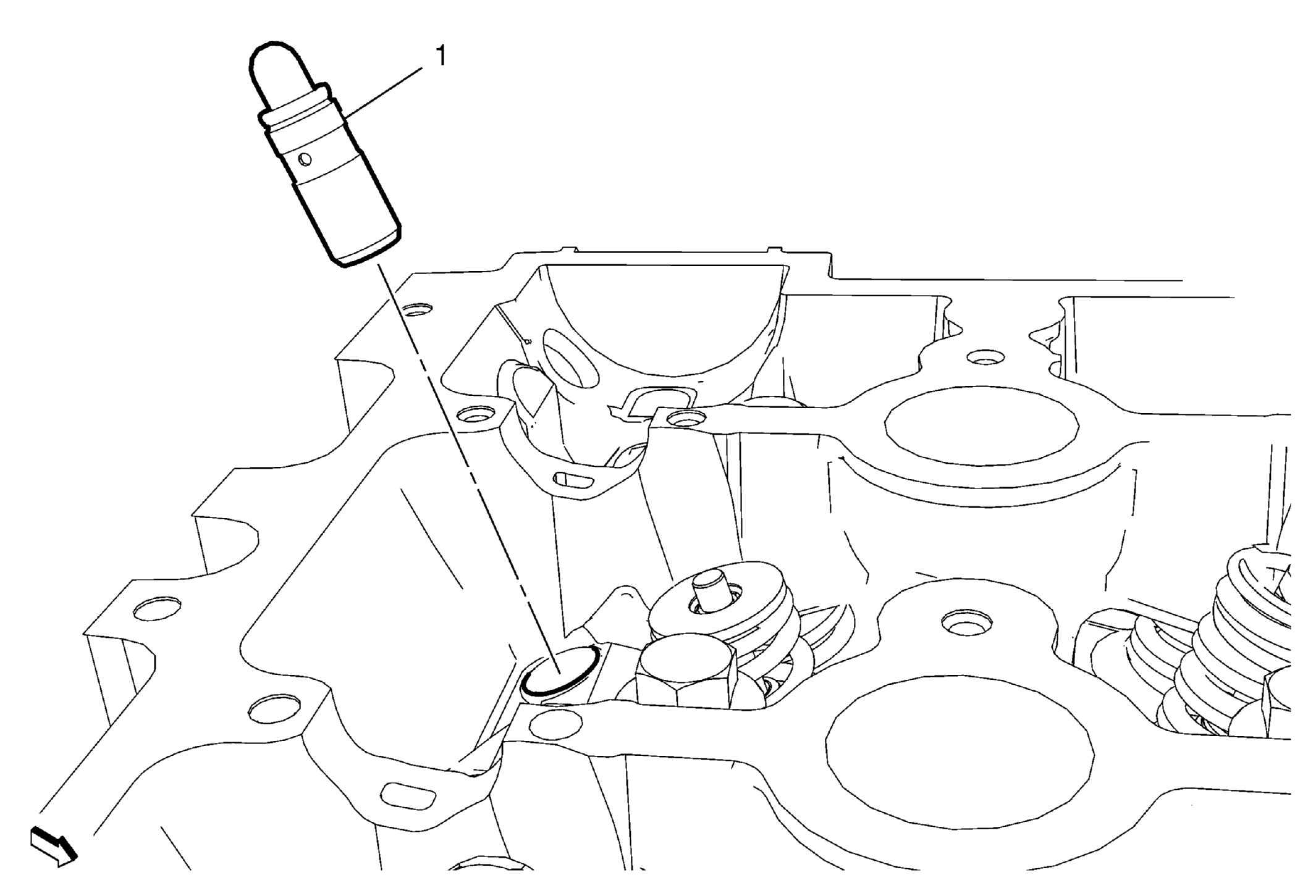

Fig 1: Hydraulic Valve Lash Adjusters

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the exhaust camshaft. Refer to Exhaust Camshaft Replacement . Remove the intake camshaft. Refer to Intake Camshaft Replacement . Remove the valve rocker arms. Refer to Valve Rocker Arm Replacement .
1	Hydraulic Valve Lash Adjuster (Qty: 16) Procedure Install the new hydraulic valve lash adjuster with engine oil

Callout

Component Name

Preliminary Procedures

Hydraulic Valve Lash Adjuster (Qty: 16)
Procedure
Install the new hydraulic valve lash adjuster with engine oil
