Camshaft Cleaning and Inspection (LAF, LEA, or LUK)
WARNING: This page is about a different variant/trim than selected.
- Inspect the camshaft journals and lobes for wear or scoring.
- Inspect the camshaft sprocket alignment notch for damage.

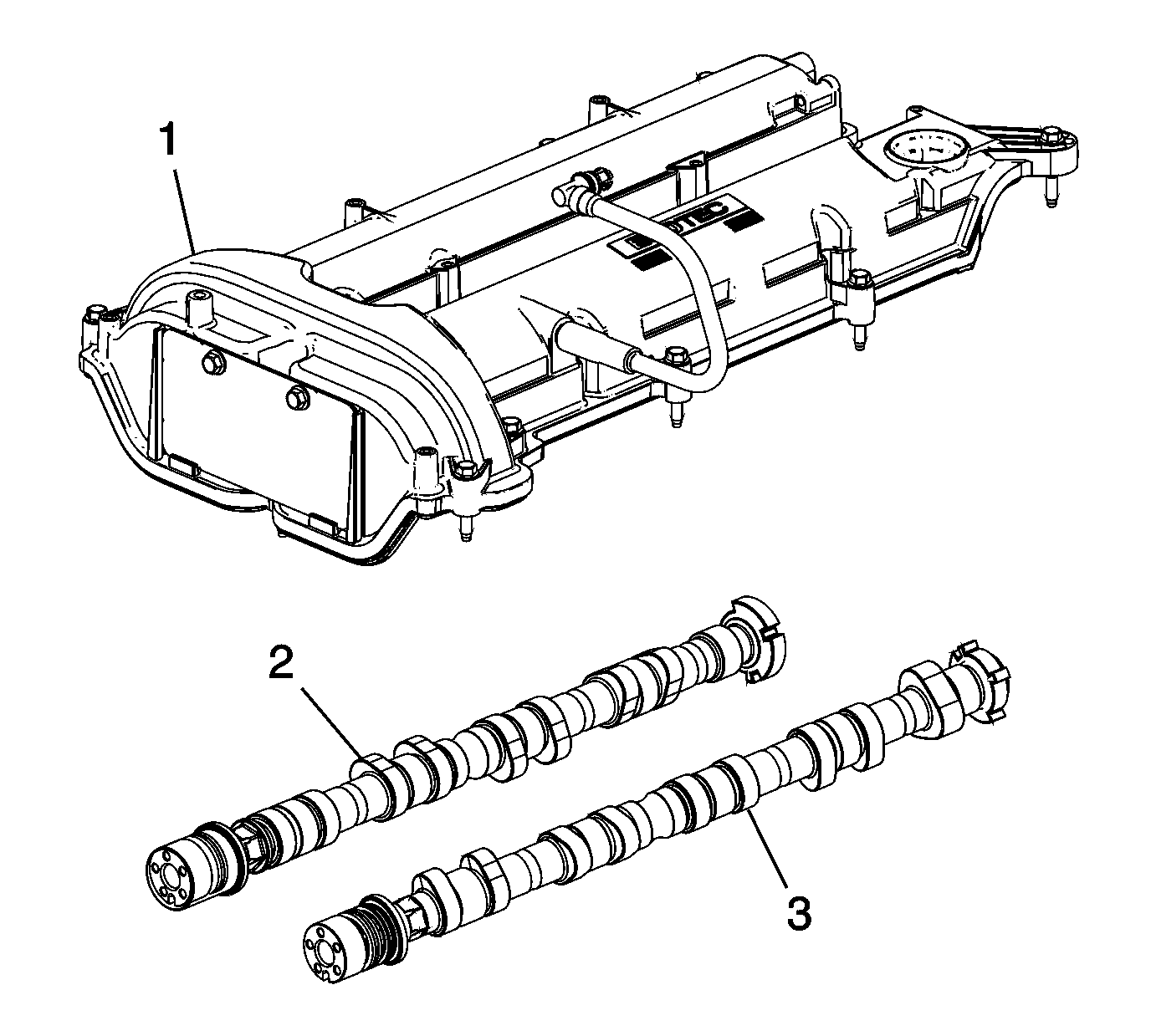

- Inspect the camshaft cover (1) for damage or loose oil control baffles.
- Clean the camshaft cover.
- Wash the camshafts (2, 3) in solvent.
- Oil the camshafts.
- Inspect the camshaft cover for cracks or other signs of damage.
