Engine Sight Shield Replacement

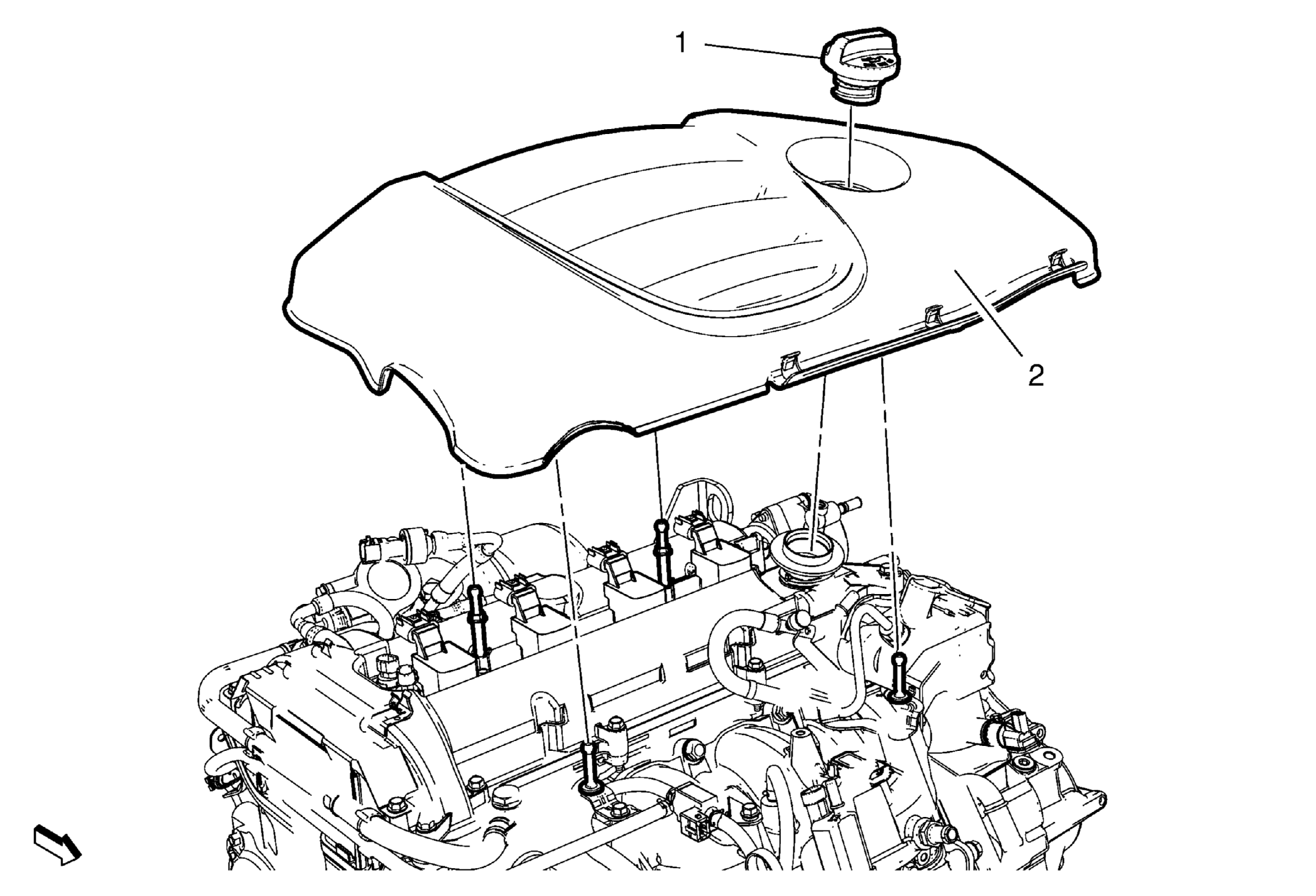

Fig 1: Engine Sight Shield
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Engine Oil Filler Cap
2
Engine Sight Shield
Courtesy of GENERAL MOTORS COMPANY
