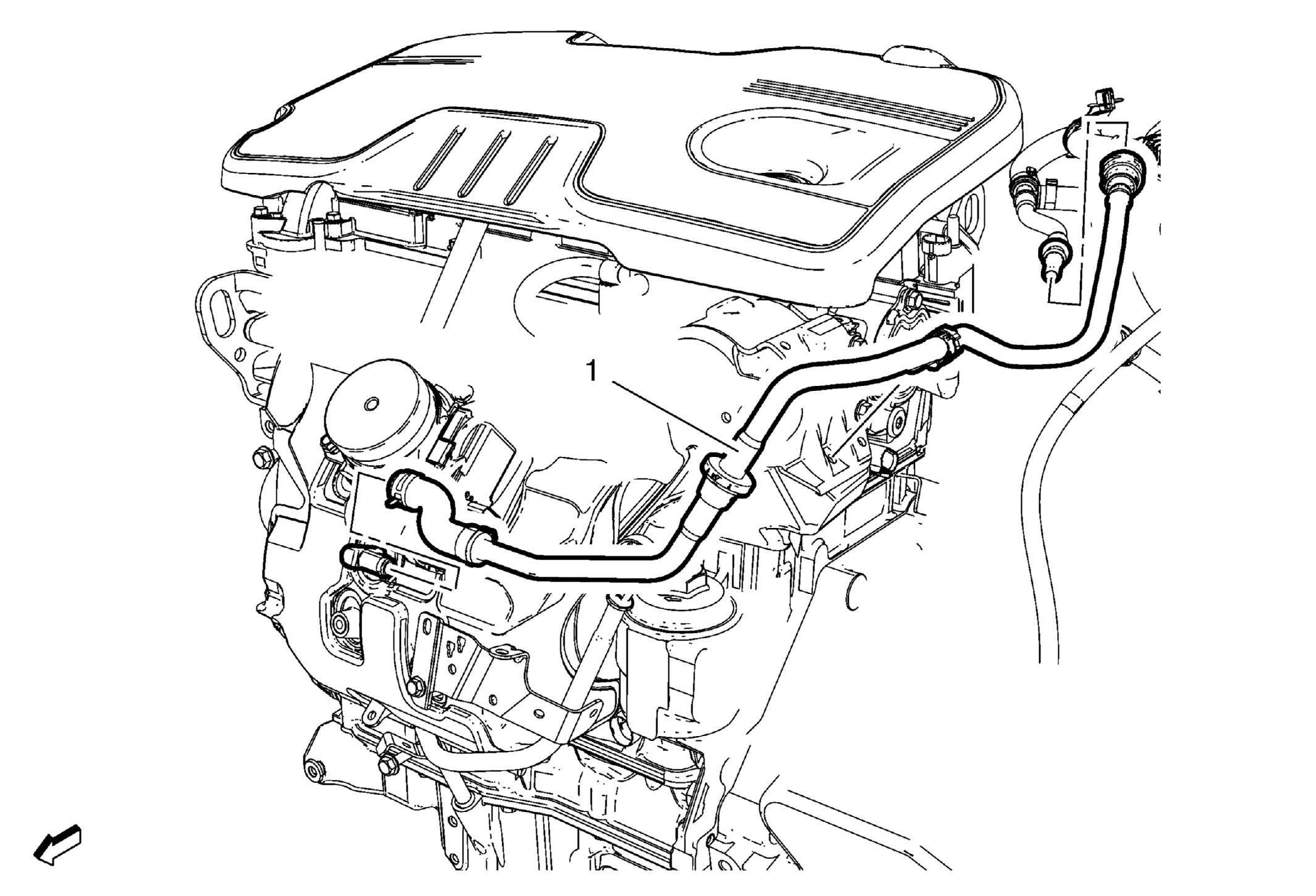

Power Brake Booster Vacuum Pipe Procedure
- Disconnect the plastic collar quick connect fitting of the engine side vacuum pipe from the booster side vacuum pipe. For connection and disconnection, refer to Plastic Collar Quick Connect Fitting Service
.
- Loosen the clamp and detach the power brake booster vacuum pipe flexible hose from intake manifold.
- Clip out the power brake booster vacuum pipe assembly from the fuel pump cover.
|
