Power Brake Booster Vacuum Pipe Replacement (2.4L LEA - Booster Side)

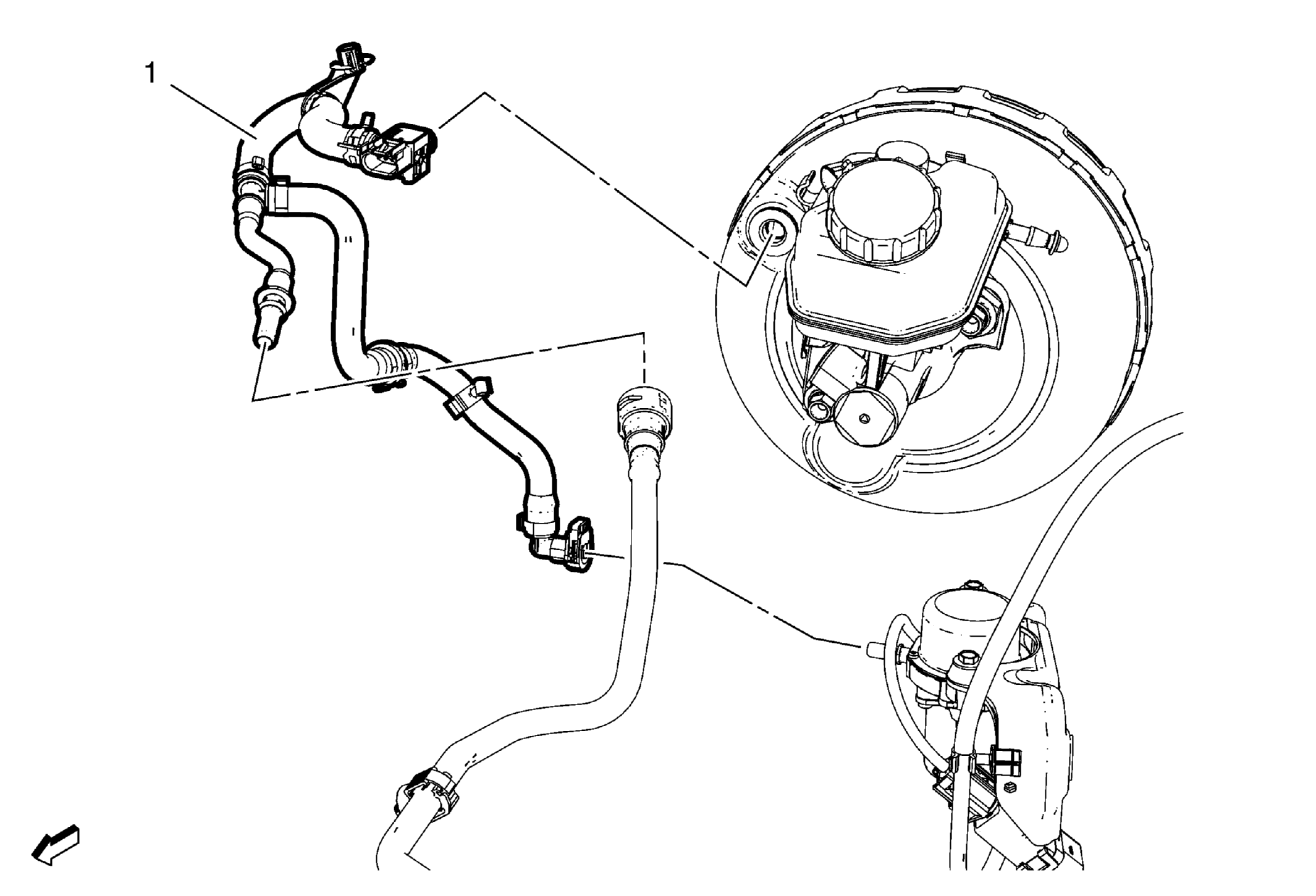

Fig 1: Power Brake Booster Vacuum Pipe (Booster Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Power Brake Booster Vacuum Pipe Procedure Disconnect the electrical connector. Detach the power brake booster vacuum pipe from power brake booster. Disconnect the plastic collar quick connect fitting of the engine side vacuum pipe from the booster side vacuum pipe. For connection and disconnection, refer to Plastic Collar Quick Connect Fitting Service . Disconnect the plastic collar quick connect fitting of the power brake booster vacuum pipe from the power brake booster vacuum pump. For connection and disconnection, refer to Plastic Collar Quick Connect Fitting Service . Clip out the power brake booster vacuum pipe assembly as necessary.

Callout

Component Name

Power Brake Booster Vacuum Pipe

Procedure

Disconnect the electrical connector.
Detach the power brake booster vacuum pipe from power brake booster.
Disconnect the plastic collar quick connect fitting of the engine side vacuum pipe from the booster side vacuum pipe. For connection and disconnection, refer to Plastic Collar Quick Connect Fitting Service .
Disconnect the plastic collar quick connect fitting of the power brake booster vacuum pipe from the power brake booster vacuum pump. For connection and disconnection, refer to Plastic Collar Quick Connect Fitting Service .
Clip out the power brake booster vacuum pipe assembly as necessary.
