Instrument Cluster Wiring Schematics: Indicators

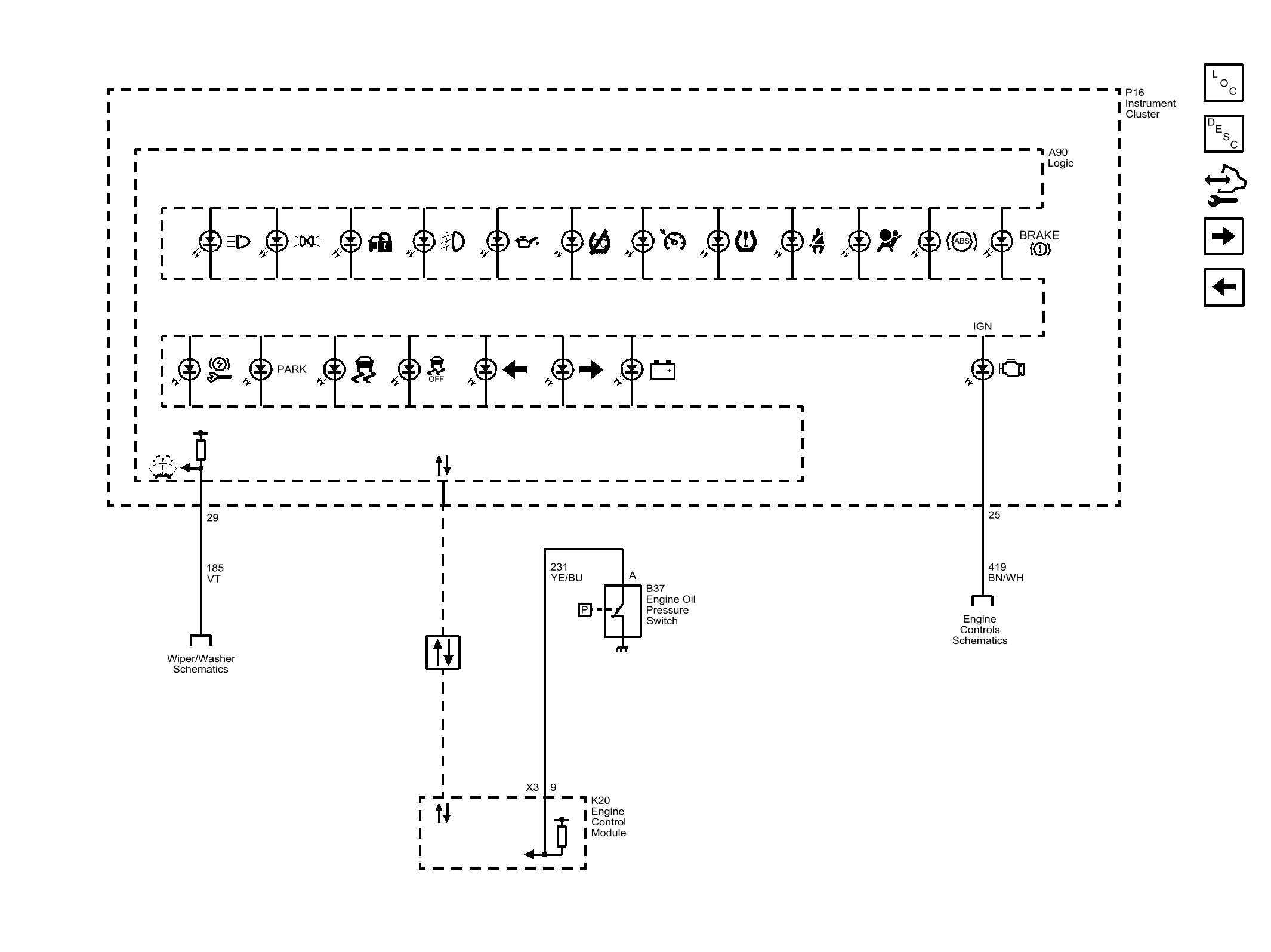

Fig 1: Indicators
GM3802026Courtesy of GENERAL MOTORS COMPANY
