Heater Inlet Hose Replacement (2.0L LHU)

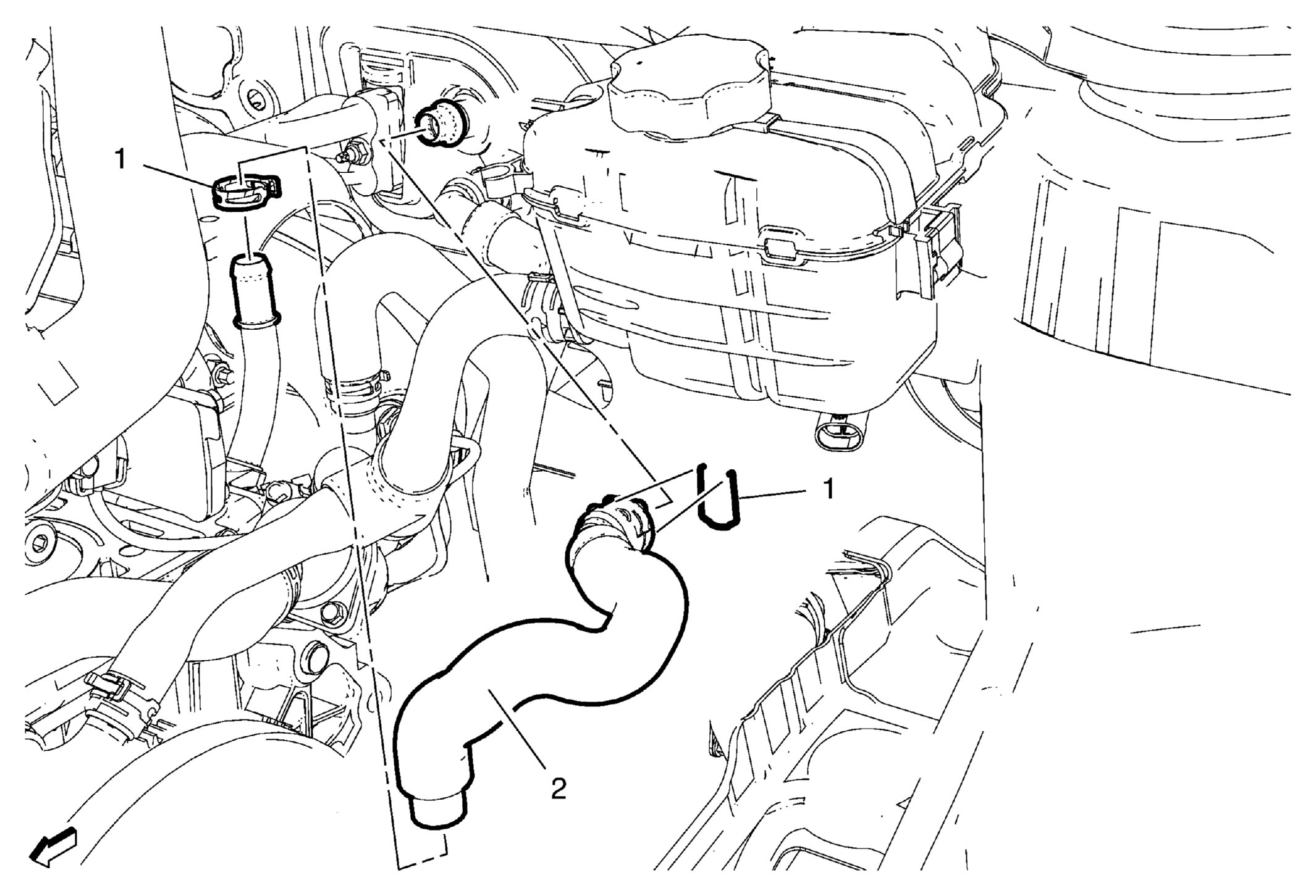

Fig 1: Heater Inlet Hose & Clamps (2.0L LHU)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery. Refer to Battery Negative Cable Disconnection and Connection . Drain the cooling system. Refer to Cooling System Draining and Filling (2.0L LHU) . Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
1	Heater Inlet Hose Clamp (Qty: 2)
2	Heater Inlet Hose

Callout

Component Name

Preliminary Procedures

Heater Inlet Hose Clamp (Qty: 2)

Heater Inlet Hose
