Air Conditioning Compressor Bracket Replacement

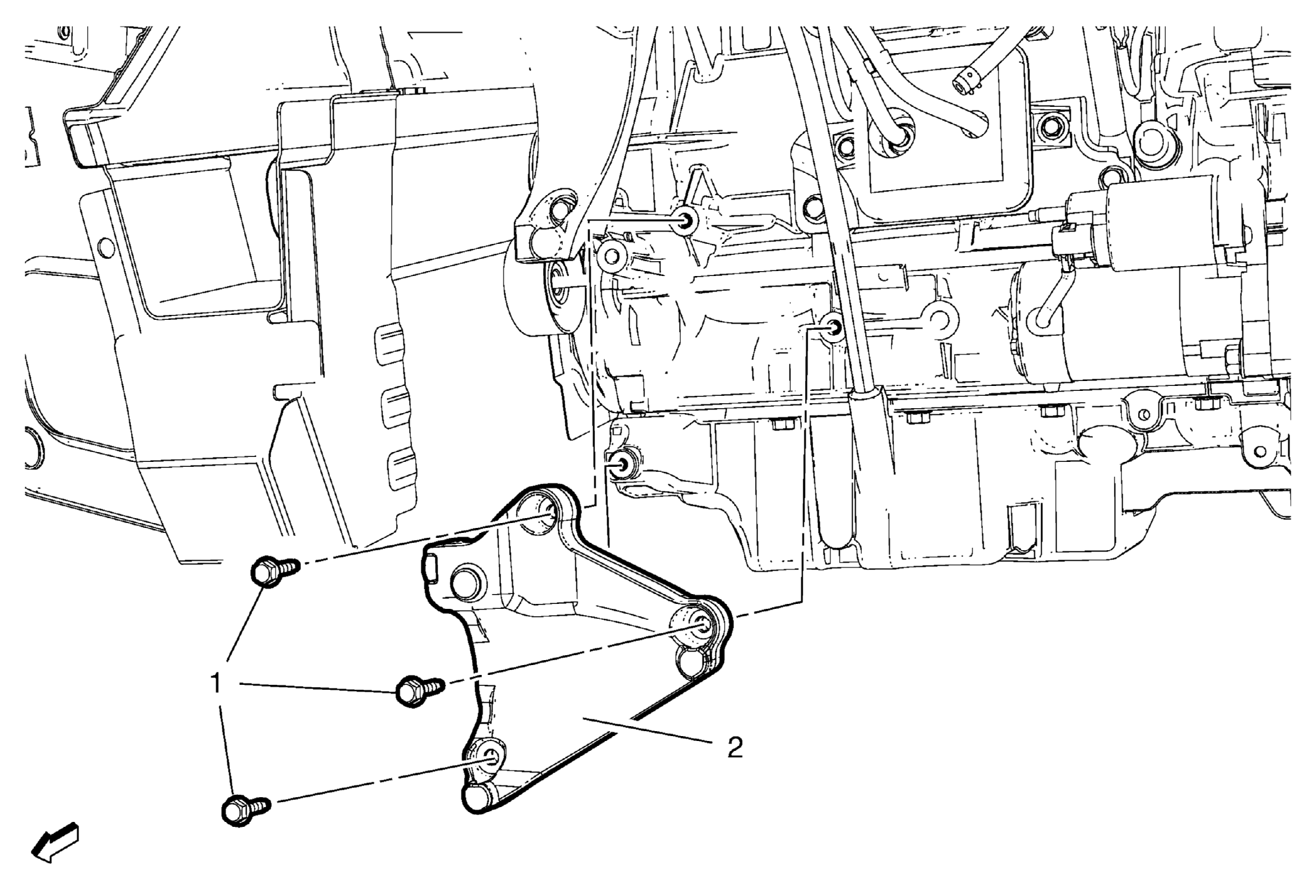

Fig 1: Air Conditioning Compressor Bracket & Bolts
GM2684952Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the air conditioning compressor. Refer to Air Conditioning Compressor Replacement (2.4L LEA) Air Conditioning Compressor Replacement (2.0L LHU) .
1 Air Conditioning Compressor Bracket Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Air Conditioning Compressor Bracket
