Section 5 (Engine Controls And Fuel - 2.0L (LHU) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Fuel Controls - Fuel Injectors, Fuel Composition, and High Pressure Controls
Fuel Controls - Fuel Injectors, Fuel Composition, and High Pressure Controls
WARNING:
This page is about a different variant/trim than selected.

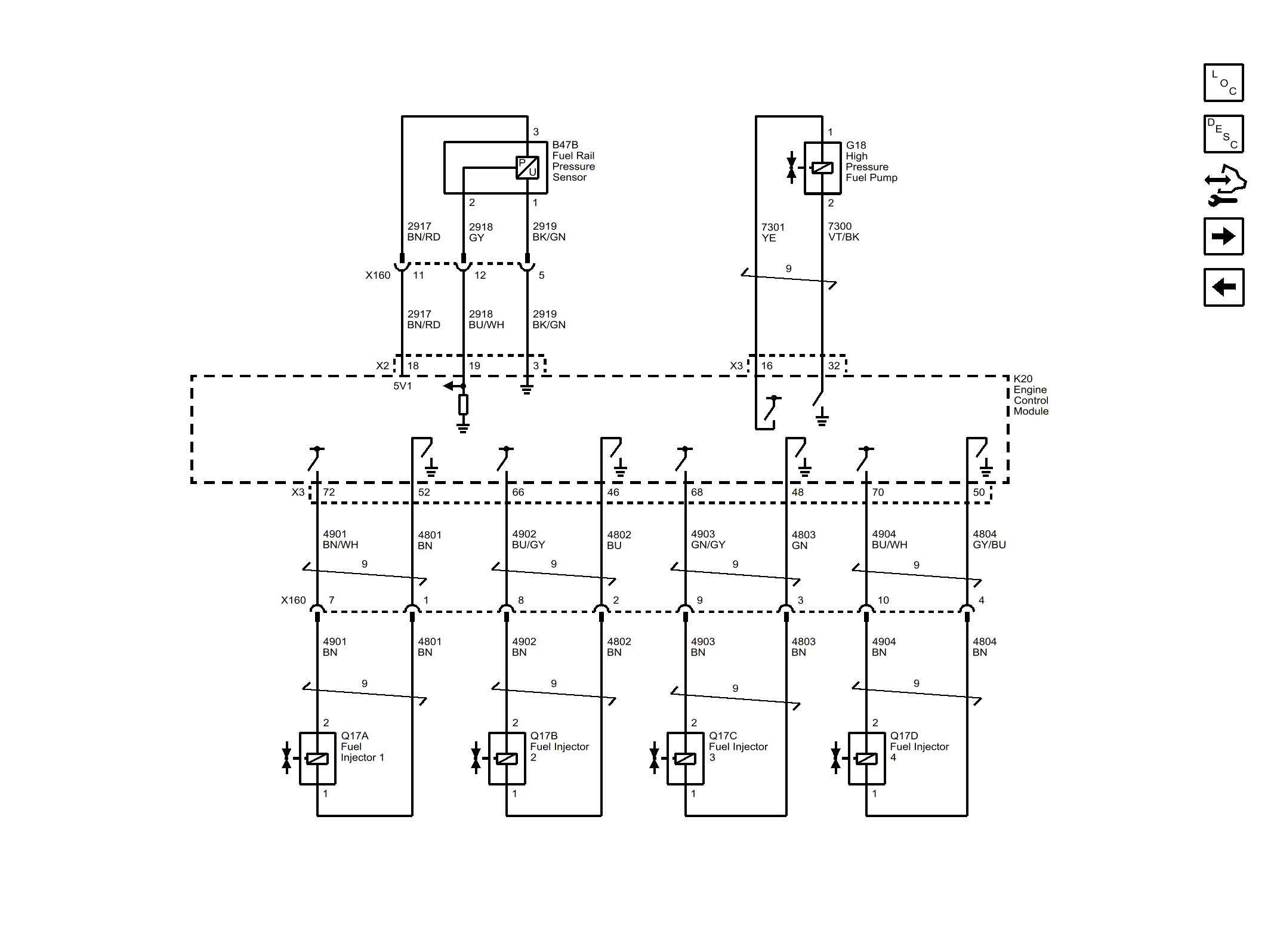

Fig 1: Fuel Controls - Fuel Injectors, Fuel Composition, and High Pressure Controls
Courtesy of GENERAL MOTORS COMPANY
