Turbocharger Control Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

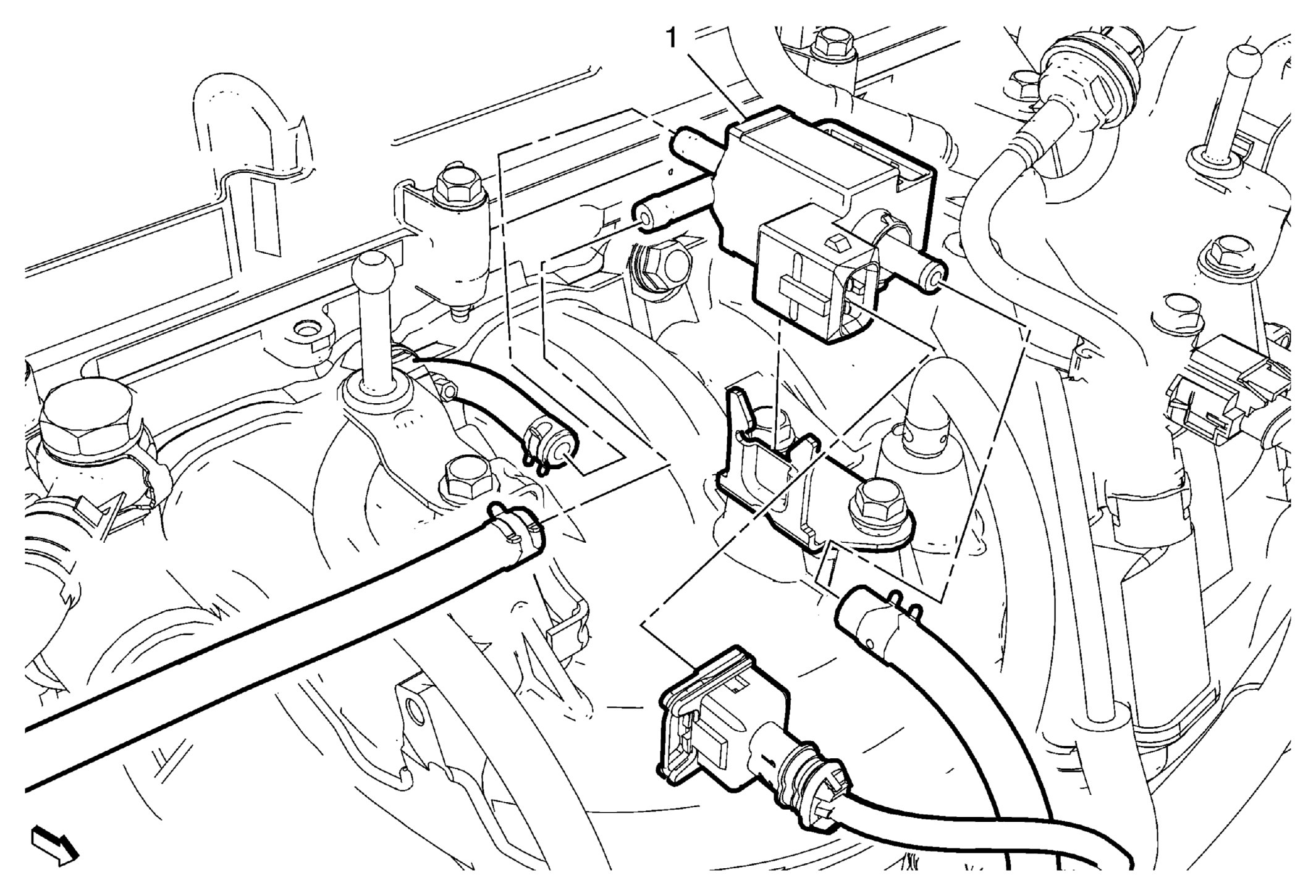

Fig 1: Turbocharger Control Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove engine sight shield. Refer to Engine Sight Shield Replacement .
1	Turbocharger Control Solenoid Valve. Procedure Remove the vacuum hose. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures
Remove engine sight shield. Refer to Engine Sight Shield Replacement .

Turbocharger Control Solenoid Valve.

Procedure
