Mass Airflow Sensor with Intake Air Temperature Sensor Replacement
WARNING: This page is about a different variant/trim than selected.

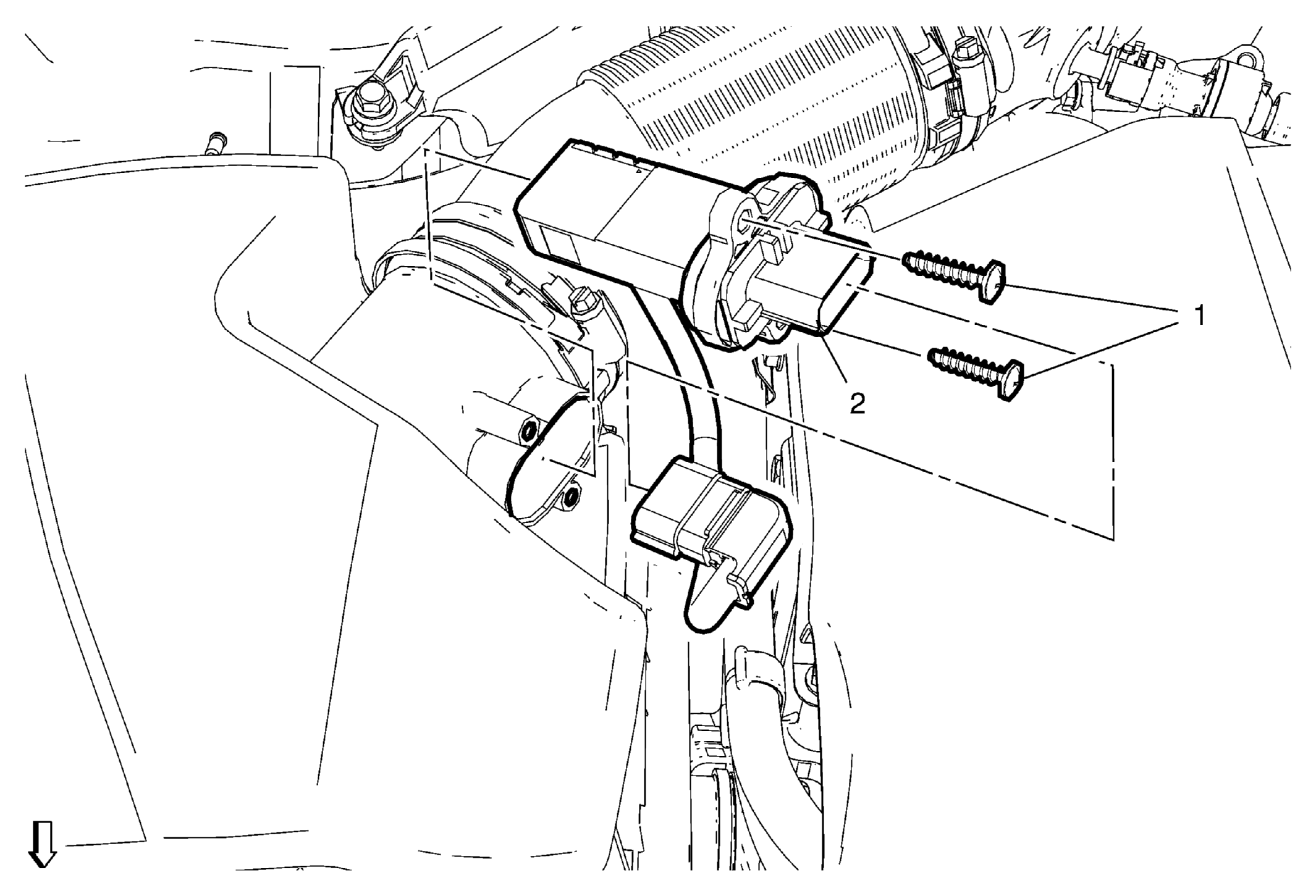

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the engine sight shield. Refer to Engine Sight Shield Replacement . |
|
| 1 | Mass Airflow Sensor Bolt (Qty: 2) |
| 2 | Mass Airflow Sensor |
