Removal Procedure

WARNING: This page is about a different variant/trim than selected.
WARNING:

Refer to Gasoline/Gasoline Vapors Warning .

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
  3. Relief the fuel pressure. Refer to Fuel Pressure Relief .
  4. Remove the charge air cooler inlet hose - turbocharger side. Refer to Charge Air Cooler Inlet Hose Replacement (Turbocharger) .

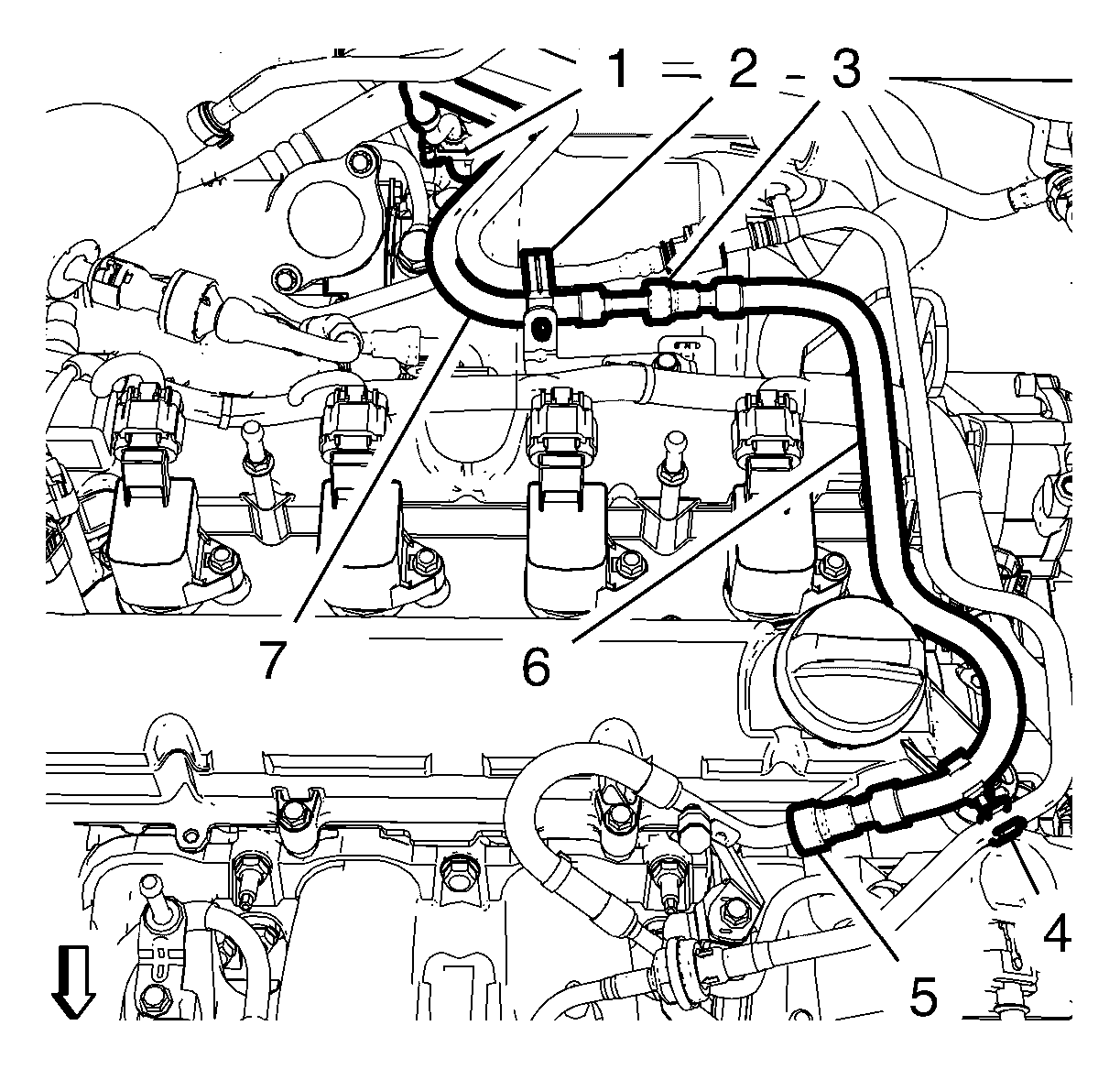

    5. Fig 1: Fuel Feed Pipe Components
    GM2743726Courtesy of GENERAL MOTORS COMPANY
  5. Unclip the fuel feed pipe (6) from the retainer clip (4)
  6. Disconnect the fuel feed pipe (6) from the fuel feed pipe - metal at the connector (5). Refer to Metal Collar Quick Connect Fitting Service .
  7. Disconnect the fuel feed pipe - front at the connector (3) from the fuel feed pipe - chassis (7). Refer to Metal Collar Quick Connect Fitting Service .
  8. Close the fuel feed pipe connectors with CH-6015  plugs.
  9. Remove the fuel feed pipe (6).
