Evaporative Emission Canister Purge Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

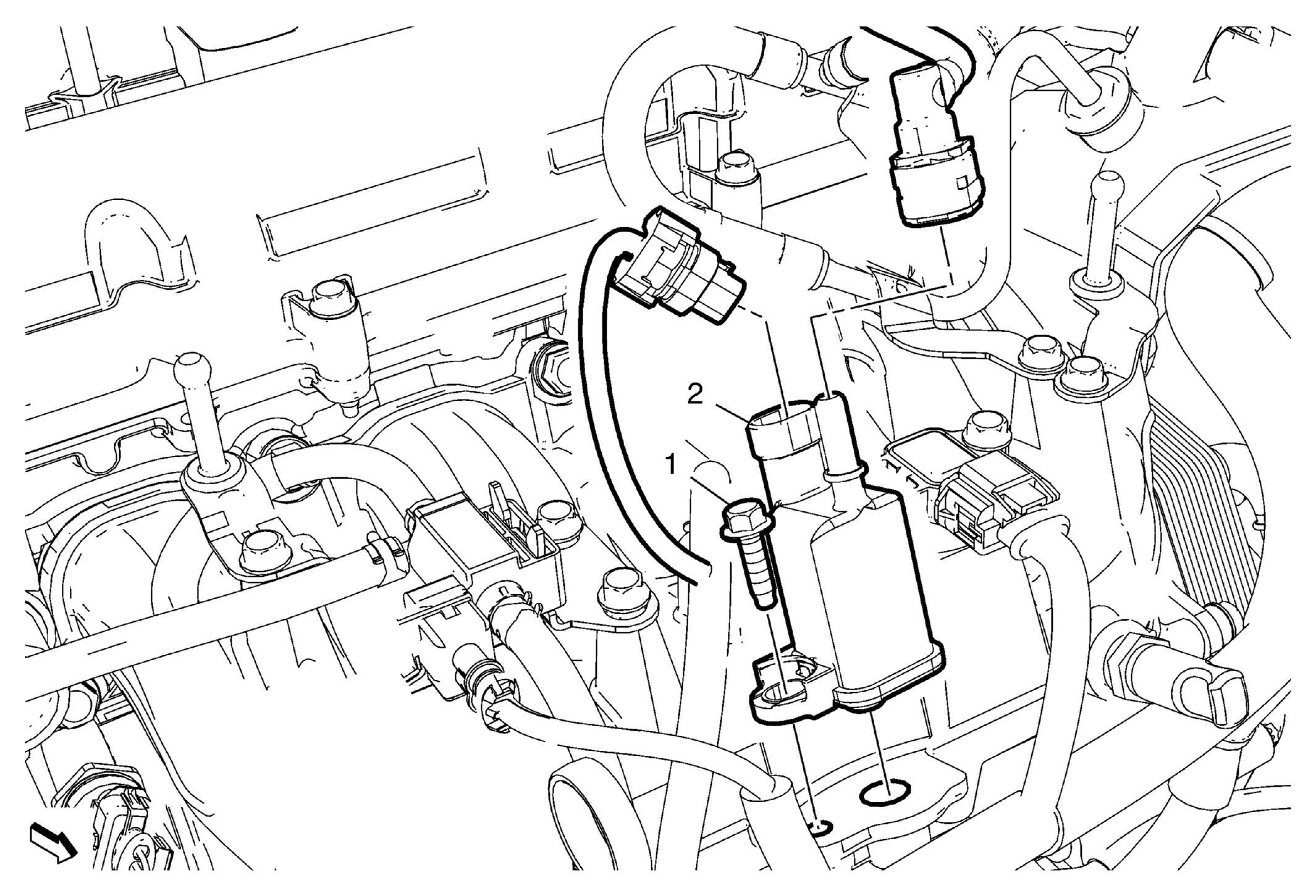

Fig 1: Evaporative Emission Canister Purge Solenoid Valve & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
1	Evaporative Emission Canister Purge Solenoid Valve Fastener CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Remove the EVAP Emission Pipe. Refer to Plastic Collar Quick Connect Fitting Service . Tighten 4 N.m (35 lb in).
2	Evaporative Emission Canister Purge Solenoid Valve.

Callout

Component Name

Preliminary Procedure
Remove the engine sight shield. Refer to Engine Sight Shield Replacement .

Evaporative Emission Canister Purge Solenoid Valve Fastener

CAUTION:

Procedure

Disconnect the electrical connector.
Remove the EVAP Emission Pipe. Refer to Plastic Collar Quick Connect Fitting Service .

Tighten
4 N.m (35 lb in).

Evaporative Emission Canister Purge Solenoid Valve.
