Engine Coolant Temperature Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

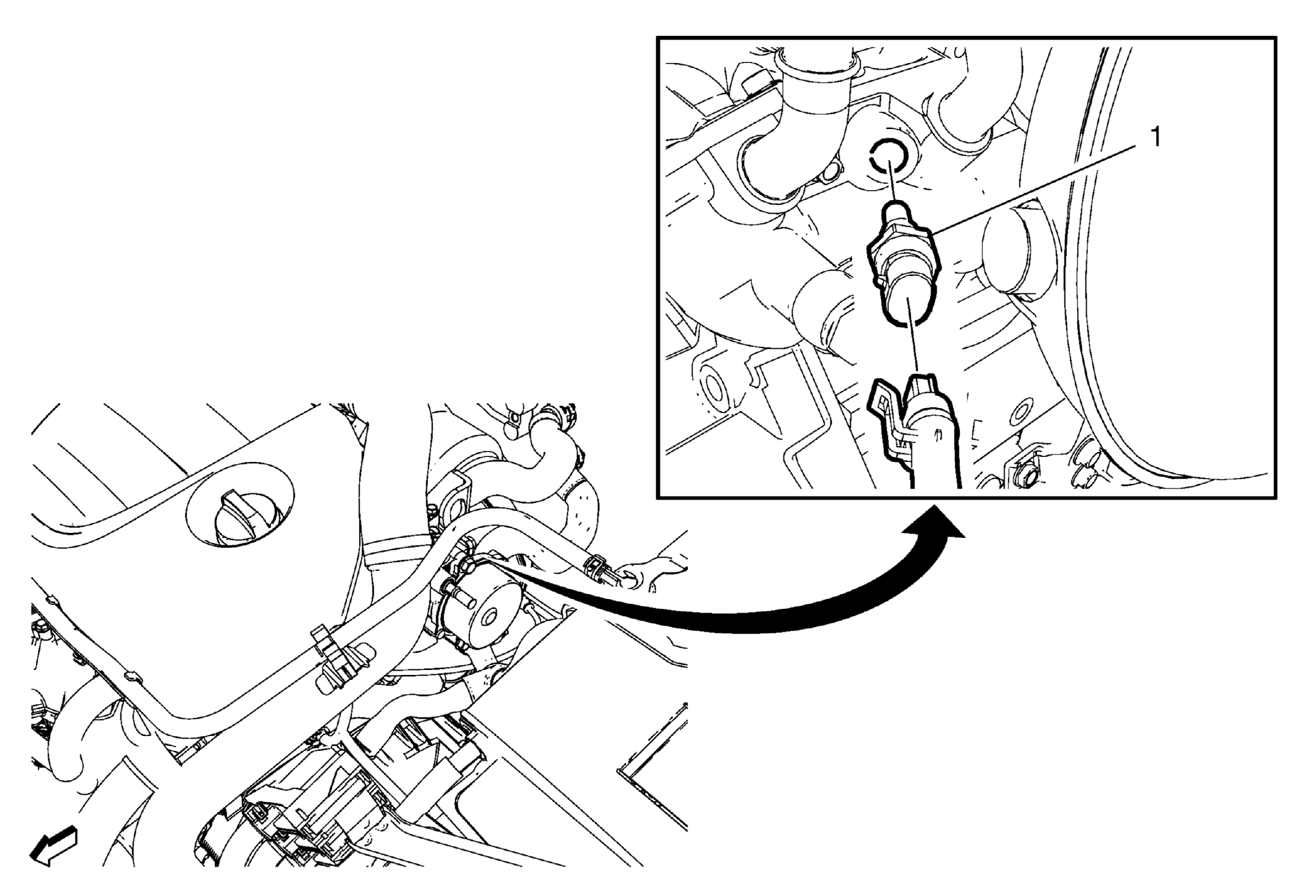

Fig 1: Engine Coolant Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (2.4L LEA)Cooling System Draining and Filling (2.0L LHU) .
1	Engine Coolant Temperature Sensor CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Use a NEW seal ring. Tighten 20 N.m (15 lb ft)

Callout

Component Name

Engine Coolant Temperature Sensor

CAUTION:

Procedure

Tighten
20 N.m (15 lb ft)
