Direct Fuel Injector Replacement
WARNING: This page is about a different variant/trim than selected.

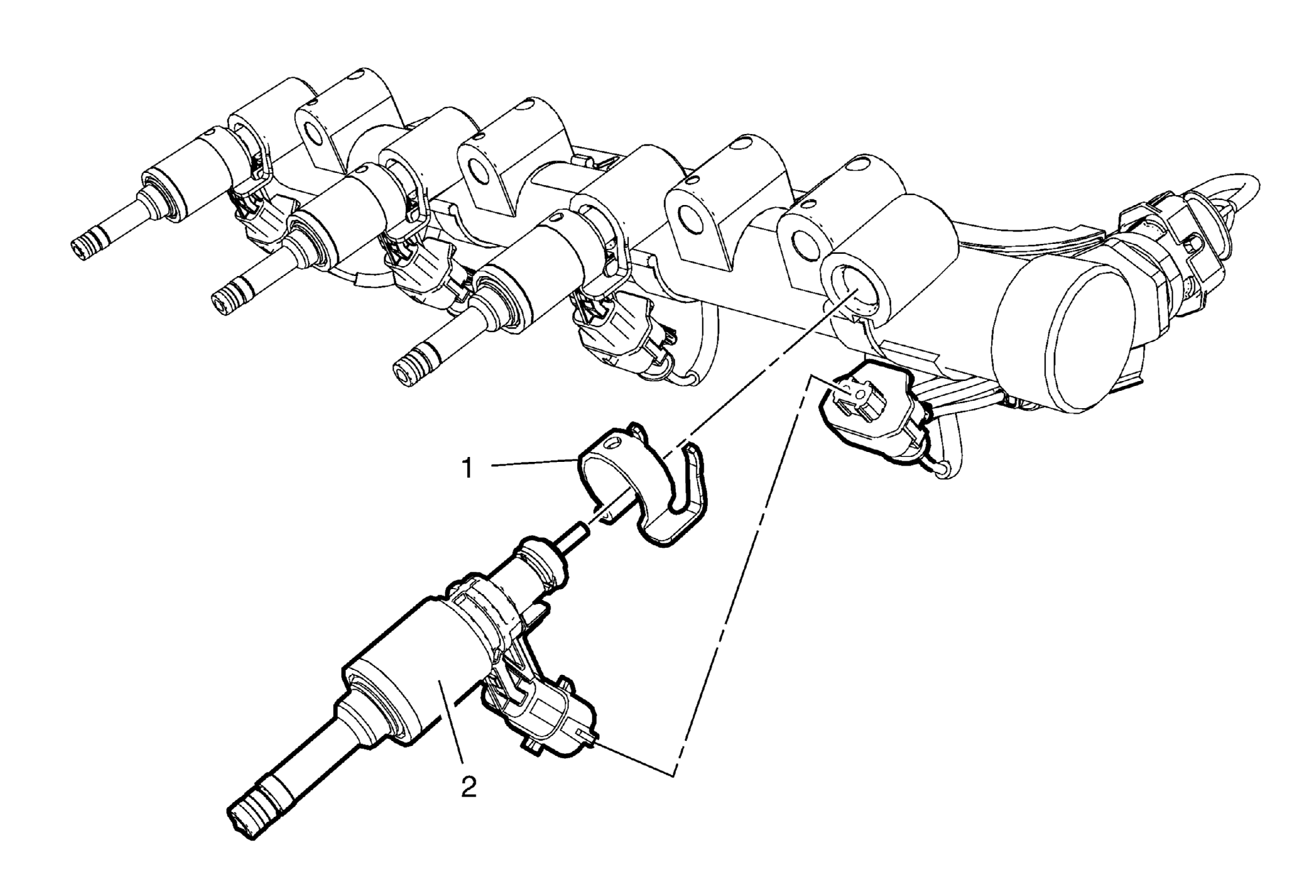

| Callout | Component Name |
|---|---|
|
CAUTION:
Preliminary Procedures Remove the fuel injection fuel rail assembly. Refer to Fuel Injection Fuel Rail Assembly Replacement .To avoid damage to the fuel injector, do not rock the fuel injector back and forth during removal. Always remove the fuel injector by twisting and pulling from the fuel rail. Failure to remove the fuel injector properly will damage the fuel injector. |
|
| 1 | Direct Fuel Injector Clamp |
| 2 | Direct Fuel Injector Procedure In case of re-using the old injector, refer to Fuel Rail and Injectors Cleaning and Inspection (LDK, LHU) . |
