Camshaft Position Sensor Replacement - Intake

WARNING: This page is about a different variant/trim than selected.

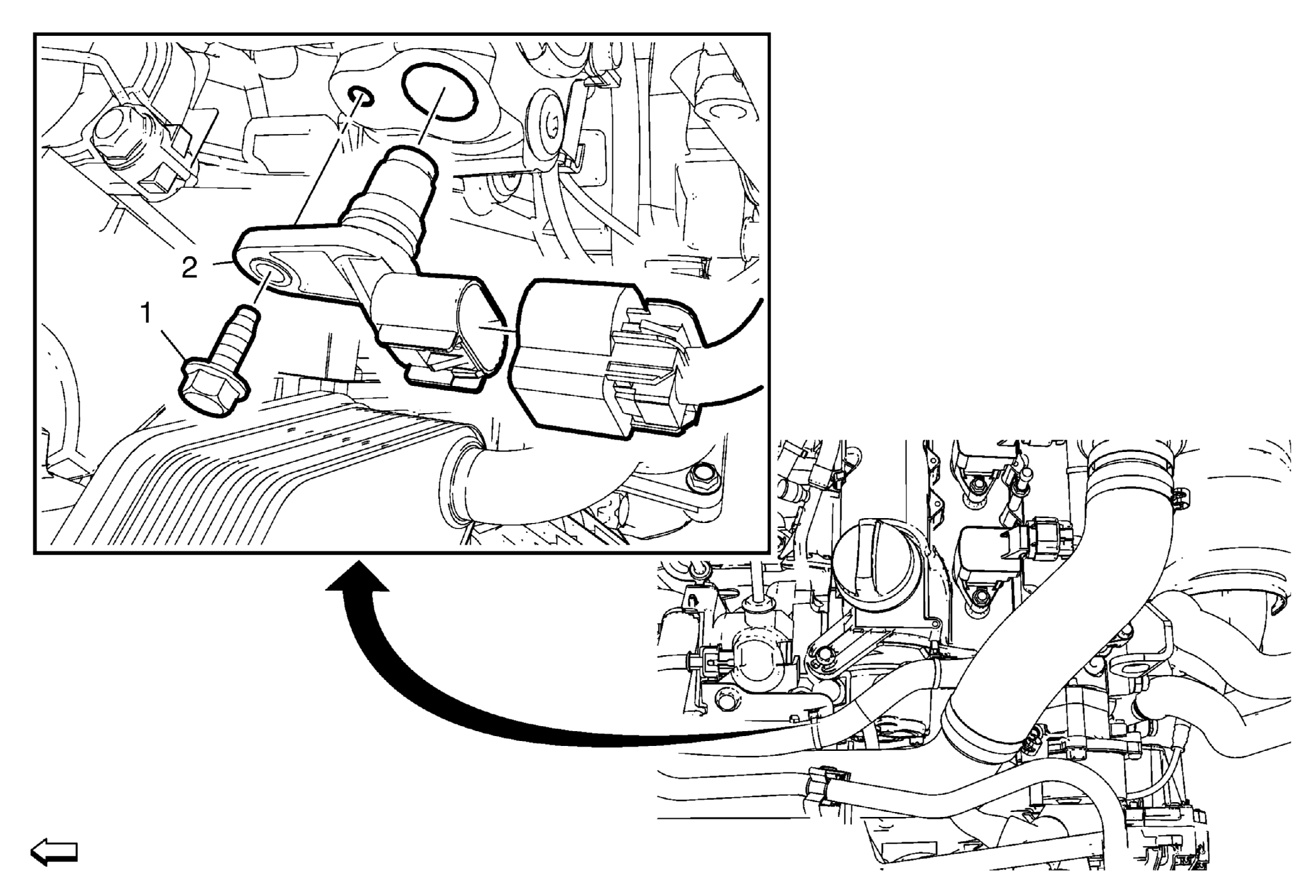

Fig 1: Intake Camshaft Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the engine sight shield. Refer to Engine Sight Shield Replacement . Remove the fuel feed intermediate pipe. Refer to Fuel Feed Intermediate Pipe Replacement .
1	Intake Camshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Intake Camshaft Position Sensor Procedure Disconnect the electrical connector. Use a NEW seal ring.

Callout

Component Name

Preliminary Procedures

Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
Remove the fuel feed intermediate pipe. Refer to Fuel Feed Intermediate Pipe Replacement .

Intake Camshaft Position Sensor Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Intake Camshaft Position Sensor

Procedure
