Camshaft Position Actuator Intake Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

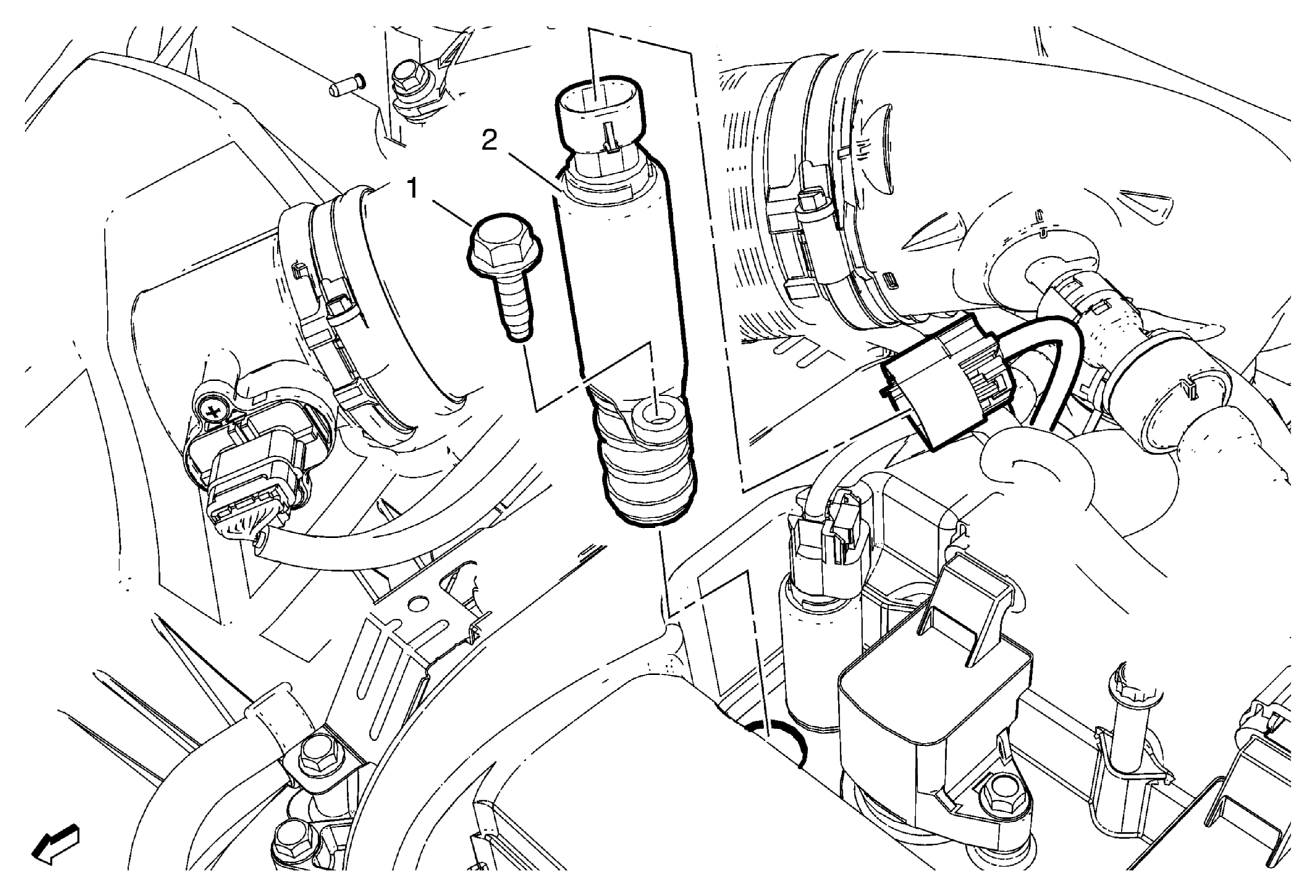

Fig 1: Camshaft Position Actuator Intake Solenoid Valve & Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
1	Camshaft Position Actuator Solenoid Valve - Intake Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Camshaft Position Actuator Solenoid Valve - Intake Procedure Disconnect the electrical connector. Use a NEW seal ring.

Callout

Component Name

Preliminary Procedures
Remove the engine sight shield. Refer to Engine Sight Shield Replacement .

Camshaft Position Actuator Solenoid Valve - Intake Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Camshaft Position Actuator Solenoid Valve - Intake

Procedure
