Turbocharger Coolant Return Pipe Replacement

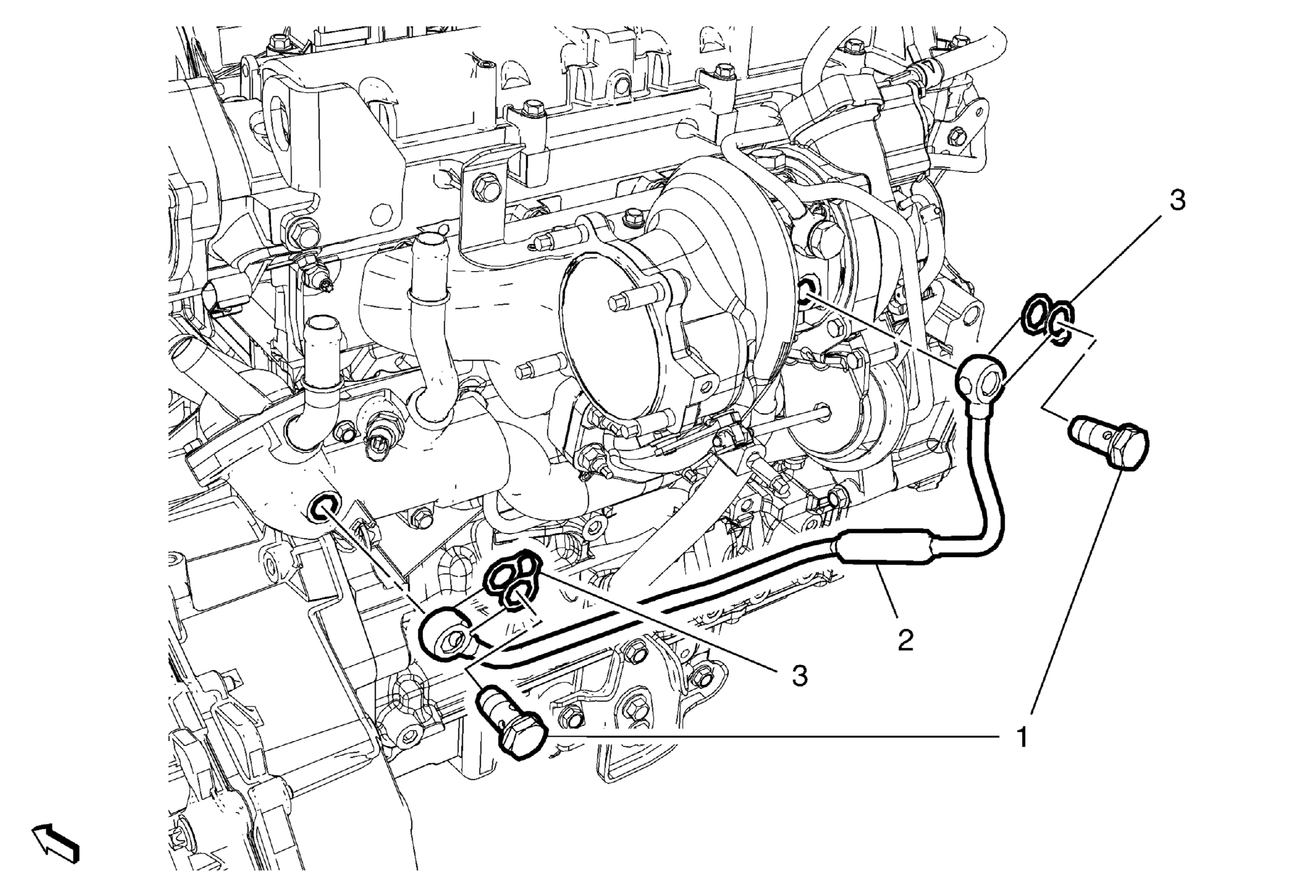

Fig 1: Turbocharger Coolant Return Pipe
GM2743379Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (2.4L LEA) Cooling System Draining and Filling (2.0L LHU) .
  2. Remove turbocharger brace. Refer to Turbocharger Brace Replacement .
1 Turbocharger Coolant Return Pipe Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
35 N.m (26 lb ft)
2 Turbocharger Coolant Return Pipe
3 Turbocharger Coolant Return Pipe Bolt Seal Ring (Qty: 2)
Procedure
Do not reuse old seal ring. Use NEW only.
