Forward Lamp Harness Routing

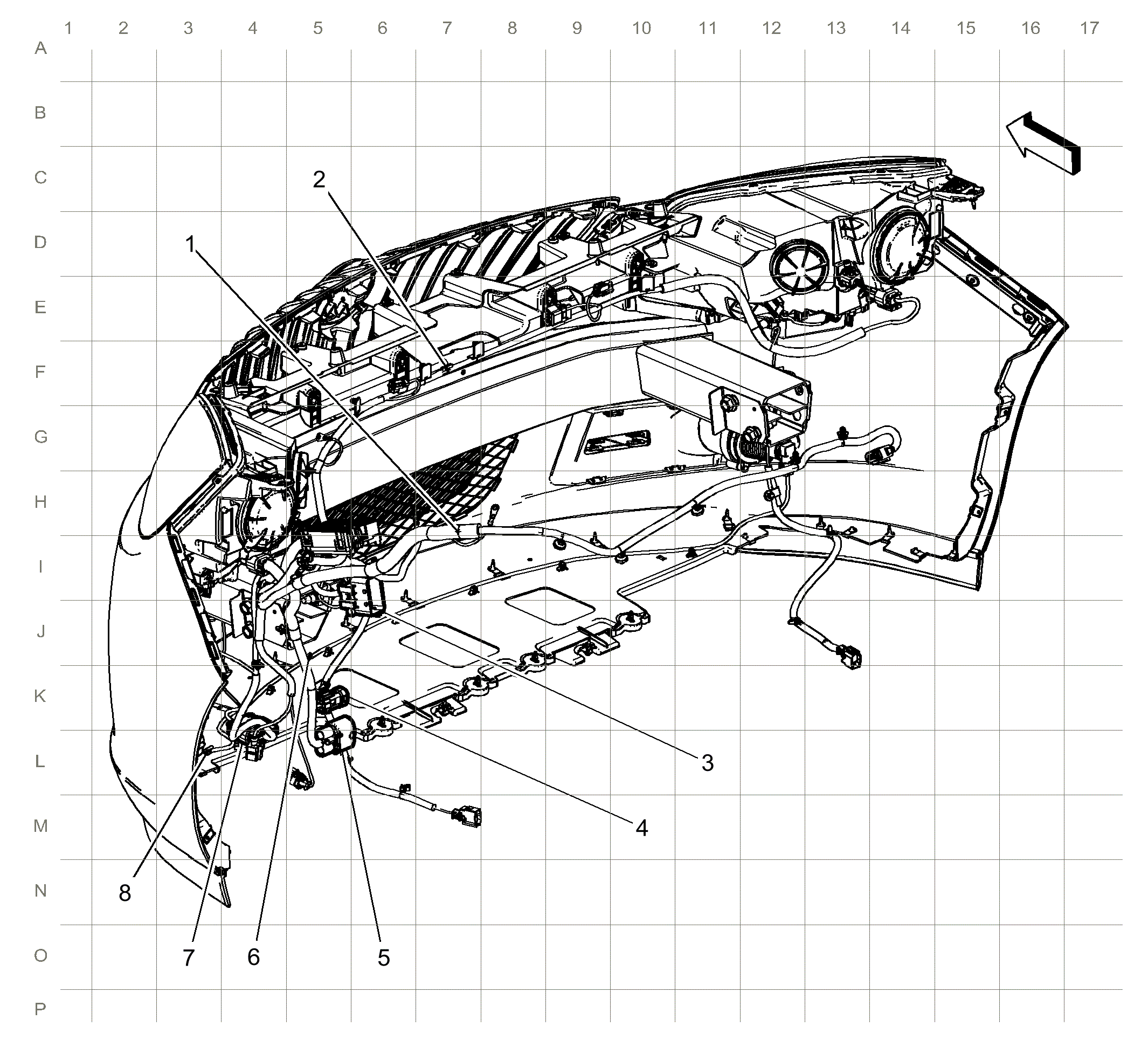

Fig 1: Forward Lamp Harness Routing
GM3814963Courtesy of GENERAL MOTORS COMPANY
Items
1:J103
2:J104
3:X100 X100 Body Harness to Forward Lamp Harness
4:X102 X102 Cooling Fan Harness to Forward Lamp Harness
5:X101 X101 Cooling Fan Harness to Forward Lamp Harness
6:J102 (T3U)
7:X118 (T3U) X118 Forward Lamp Harness to Fog Lamp Harness (T3U)
8:J101 (T3U)
