Power Brake Booster Vacuum Pipe Replacement (2.0L LHU - Booster Side)
Power Brake Booster Vacuum Pipe Replacement (2.0L LHU - Booster Side)

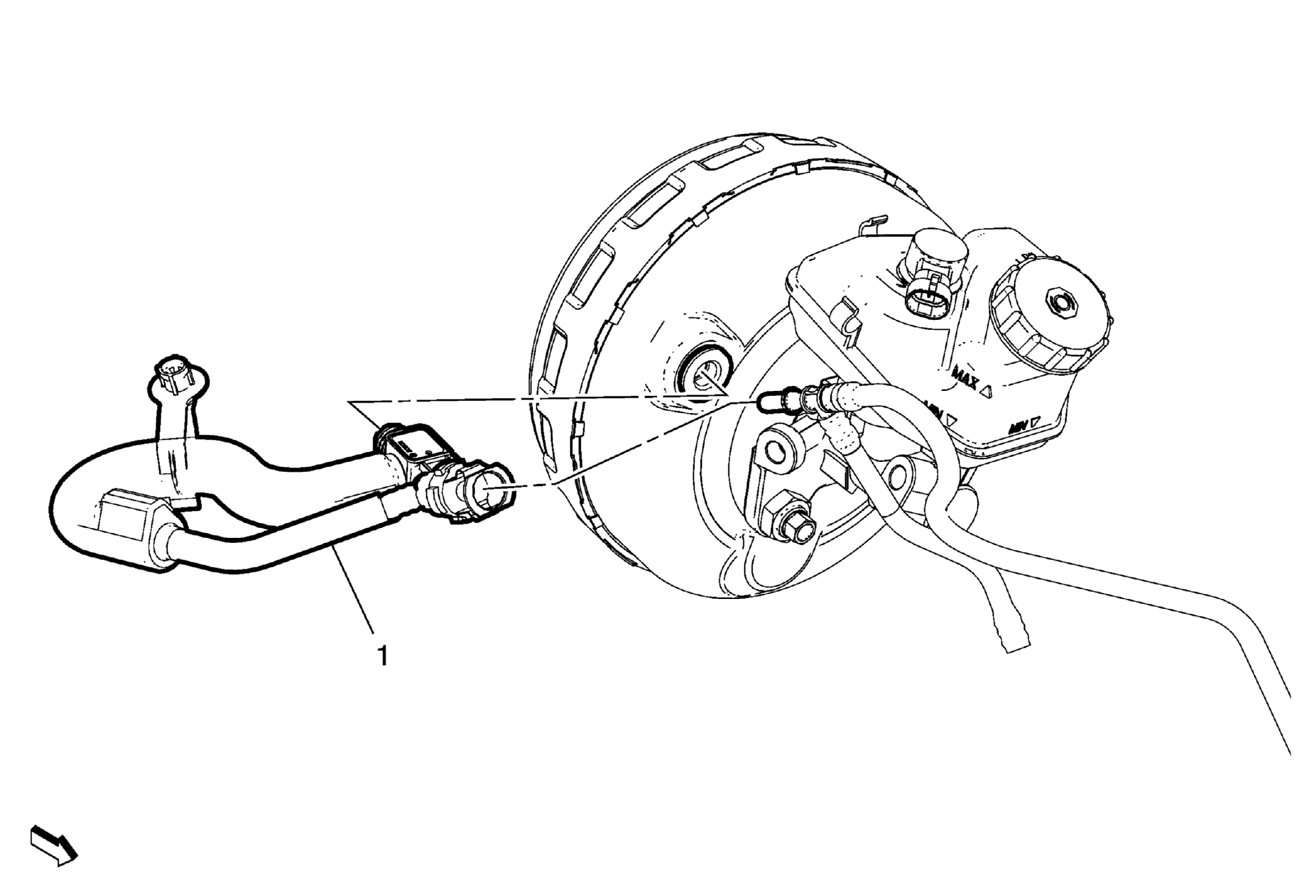

Fig 1: Power Brake Booster Vacuum Pipe (2.0L LHU - Booster Side)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Power Brake Booster Vacuum Pipe
Procedure
Disconnect the electrical connector.
Detach the vacuum pipe from power brake booster.
Disconnect the plastic collar quick fitting from engine side vacuum pipe. For connection and disconnection, refer to
Plastic Collar Quick Connect Fitting Service
.
